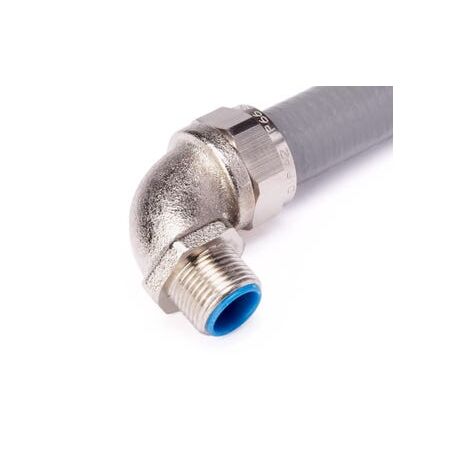

50mm Liquid Tight 90 Degree IP66 M50 Nickel-Plated Brass Cabac
Cabac Liquid Tight Conduit Fitting 90 Degree IP66 Protection & M50 Thread features Nickel plated brass connector body and hexagonal nut construction,...
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Nickel plated brass connector body and hexagonal nut
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M50 x 1.5
- Conduit size: 50mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 73mm x 97mm x 67mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass construction for superior durability
- 90-degree male thread fitting with external thread for threaded entries and knockouts
- Dust proof and liquid tight seal providing mechanical and environmental protection
- High chemical resistance and mechanical strength
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting for easy use
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with hazardous area standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight 90 Degree Fitting M50 is available now for immediate purchase. Ideal for industrial and commercial wiring protection in hazardous and demanding environments.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 50mm conduit and features an M50 x 1.5 external thread.
Q: Is this fitting suitable for hazardous area electrical installations?
A: Yes. It is tested and certified to IEC60079-0, IEC60079-31 and complies with AS/NZS 60035 for hazardous area electrical equipment.
Pair this installation with a liquid tight conduit fitting 45 degree where conduit routing requires a gradual change in direction.
A liquid tight conduit fitting stainless steel option is available for installations requiring corrosion resistant conduit connections.
Add an inspection tee to provide convenient access for conduit inspection and future maintenance.
