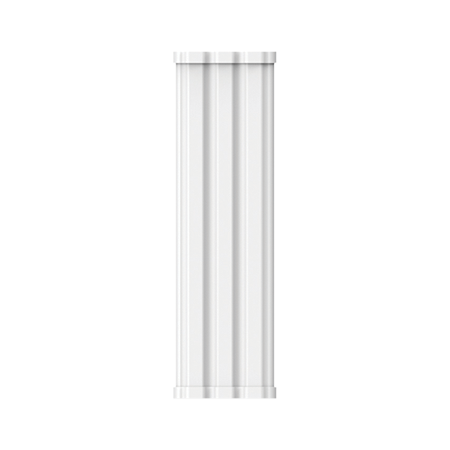

5GHz Sector Antenna 16dBi | 120° Beamwidth | 5km Range by Matchmaster

SKU: 57MM-SA02
$278.90 List price: $337.60
+
5GHz sector antenna with 16dBi gain and 120° beamwidth—ideal for wireless internet service providers and telecommunications infrastructure. Built for extended range, with efficient energy use and professional installation recommended.

Product Name/Title: 5km Range Sector Antenna (16dBi 120° 5GHz) for 57MM-BS01

Brand: Matchmaster

SKU: 57MM-SA02

Alternatively Known As: 5GHz Sector Antenna, 16dBi Antenna, Wireless Data Antenna

Technical Specifications
  • Working Distance: 5 KM
  • Gain: 16 dBi
  • Angle: 120° horizontal, 10° vertical
  • Capacity: 5 GHz
  • IP Rating: IP55
  • Dimensions (H x L x W): 300mm x 200mm x 200mm
  • Weight: 1.5 kg
Key Features
  • Semi-directional 5 GHz antenna with 16 dBi gain
  • 120° horizontal and 10° vertical link angle
  • Up to 5 km range
  • Supports PTMP technology for up to 32 clients
  • Free cloud management for setup and monitoring
  • Includes free site survey tool with spectrum scan
  • One-touch pairing system
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Private wireless data networks
  • Linking buildings
  • Farms
  • Mining sites
Environmental Benefits
  • Reduces the need for expensive fibre backhauls, promoting cost-effective networking solutions.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster 5km Range Sector Antenna (16dBi 120° 5GHz) is available now for immediate purchase. Ideal for private wireless data networks and long-range connectivity.

Brochure (57mm-sa02_brochure.pdf, 123 Kb) [Download]

Wireless Bridge Installation Guide (ruijie-reyee-series-wireless-bridge-implementation-cookbook-v1-5.pdf, 6,451 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
