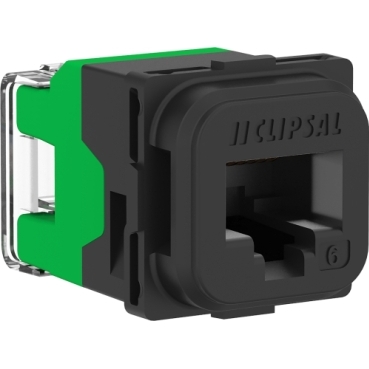

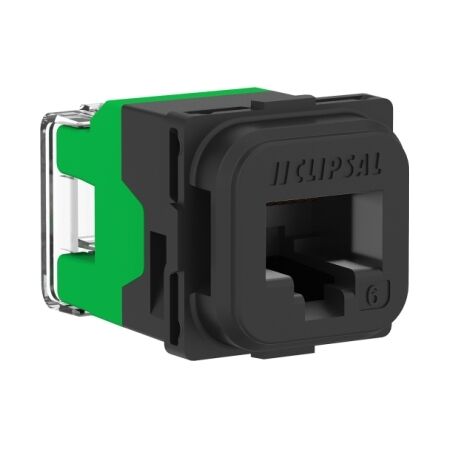

RJ45 Connector Unshielded Cat 6 | 40M | Black by Clipsal

BRAND: Clipsal
SKU: 40RJ45SMA6C-BK
$13.40 List price: $20.20
+
RJ45 connector with unshielded Cat 6 design and 40M range—ideal for residential and commercial network installations. Built for compatibility with RJ45 plugs, offering mechanical durability of 750 cycles.

Product Name/Title: Clipsal Actassi, S-110 RJ45 Connector, 40M, Unshielded Cat 6, Bag x1 - Black

Brand: Clipsal

SKU: 40RJ45SMA6C-BK

Alternatively Known As: RJ45 Connector, Actassi Connector, Network Connector

Technical Specifications
  • Connector type: RJ45
  • Contact resistance: 20 mOhm
  • Insulation resistance: > 500 MOhm at 100 V DC
  • AWG gauge: AWG 24 to AWG 23
  • Cable outer diameter: 0.9 to 1.4 mm
  • Communication network category: 6
  • Transmission frequency: 1 to 250 MHz
  • Pin number: 8 pins of copper alloy and gold plated
  • Flame retardance: UL94-V0
  • Dimensions (H x L x W): 22mm x 36mm x 16mm
  • Weight: 0.008 kg
Key Features
  • Unshielded design for standard networking applications.
  • Compatible with RJ45 plugs.
  • Mechanical durability of 750 cycles.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Networking: Suitable for residential and commercial network installations.
Standards & Compliance
  • Complies with AS/NZS 3080:2003 for network cabling.
Environmental Benefits
  • Compliant with RoHS directives and free of toxic heavy metals.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Actassi S-110 RJ45 Connector is available now for immediate purchase. Ideal for network connectivity solutions.

40RJ45SMA6C-BK (40RJ45SMA6C-BK, 233 Kb) [Download]
