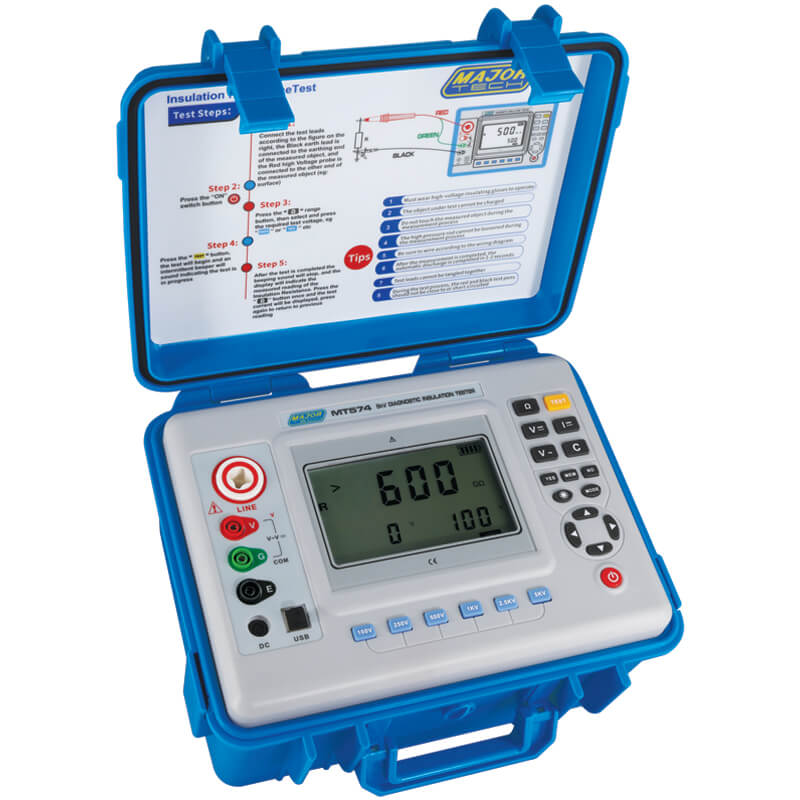

5kV Diagnostic Insulation Tester | 10TΩ Insulation Resistance | CAT IV 600V Rated | Large Backlit LCD by Majortech
5kV diagnostic insulation tester with insulation resistance up to 10TΩ and CAT IV 600V rating—ideal for industrial and mining applications. Built for trained personnel, it features a large backlit LCD and stores 500 test results for efficient diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5kV Diagnostic Insulation Tester | 10TΩ Insulation Resistance | CAT IV 600V Rated | Large Backlit LCD by Majortech
Brand: Majortech
SKU: MT574
Alternatively Known As: High Voltage Insulation Tester, Digital Insulation Resistance Tester, 5kV Insulation Meter, MT574 Insulation Tester
Technical Specifications
- Insulation Test Voltage Ranges: 100V, 250V, 500V, 1000V, 2500V, 5000V
- Insulation Resistance Range: 0.1MΩ to 10TΩ depending on voltage
- Resolution: 0.001MΩ to 0.01MΩ depending on range
- Accuracy: ±3% reading ±5 digits
- DC Voltage Range: 0.0V to 1000V, Resolution: 0.1V, Accuracy: ±1.5% reading ±3 digits
- AC Voltage Range: 0.0V to 750V, Resolution: 0.1V, Accuracy: ±1.5% reading ±3 digits
- DC Current Range: 1mA to 1000pA, Resolution: 1pA, Accuracy: ±30% reading ±5 digits
- Capacitance Range: 10μF to 100nF, Resolution: 0.1nF, Accuracy: ±10% full scale ±5 digits
- Short Circuit Current Output: up to 6mA
- Memory: Stores 500 test results
- Display: Large backlit LCD
- Power Supply: 12.6V rechargeable batteries
- Dimensions (H x L x W): 120mm x 300mm x 250mm
- Weight: 1.5 kg
Key Features
- CAT IV 600V and CAT III 1000V rated digital high voltage tester
- Measurement range from 100V DC to 5000V DC with 6 preset ranges
- Insulation resistance measurement up to 10TΩ
- Automatic circuit discharge after test completion
- Microprocessor controlled with diagnostic capabilities
- Short circuit current output up to 6mA
- Large backlit LCD display showing insulation, measuring time, output voltage and current
- Measures AC voltage up to 750V and DC voltage up to 1000V
- Measures DC current up to 6mA and capacitance up to 50μA
- Robust case suitable for extended field use
- Powered by 12.6V rechargeable batteries
- Stores 500 test results with USB data transfer capability
Professional Installation Requirements
- Professional installation is not required; however, operation should be conducted by trained personnel familiar with high voltage testing and safety procedures.
Applications
- Testing insulation on rotating machines
- Transformers insulation testing
- Cables insulation measurement
- High voltage generators testing
- Electric circuits insulation diagnostics
- Surge arrestors testing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Rechargeable battery reduces disposable battery waste
- Accurate diagnostics help prevent electrical failures and reduce energy waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech MT574 5kV Diagnostic Insulation Tester is available now for immediate purchase. Ideal for industrial and mining applications requiring precise insulation testing and diagnostics.
