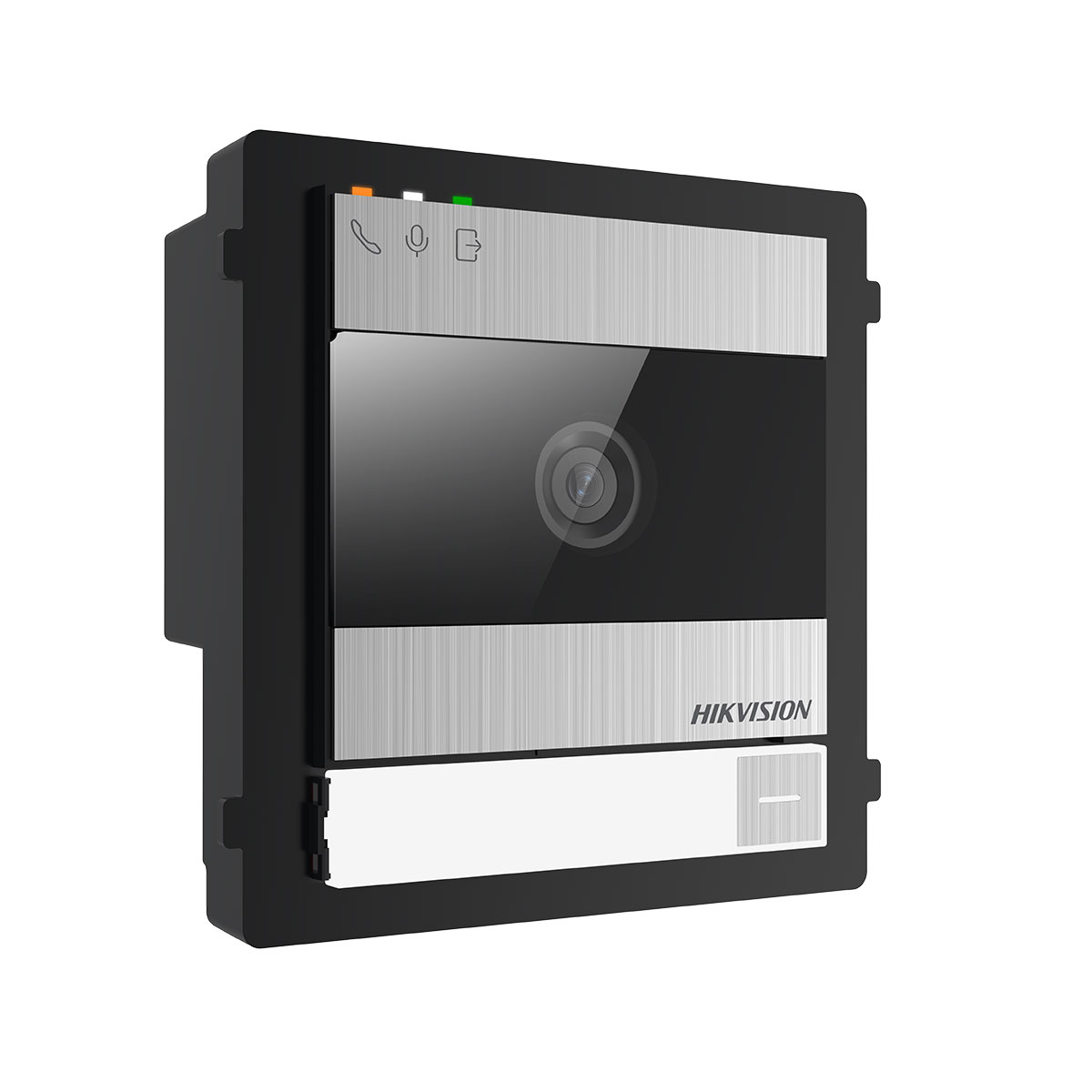

5MP Modular Door Station Stainless Steel Hikvision
Hikvision 5MP modular door station features a stainless steel finish. Ideal for Hikvision intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 5MP Modular IP Door Station, Hikvision KD8 Series Door Station, Stainless Steel Video Intercom Main Unit
Technical Specifications
- Camera: 5 MP
- Image Resolution: 3200 x 1800
- Field of View: Horizontal 134°, vertical 82°
- Wide Dynamic Range: 100 dB WDR
- Supplementary Lighting: Low-light IR illumination
- Video Compression: H.264, H.265 and MJPEG
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Features: Noise suppression, echo cancellation and adjustable volume
- Network Interface: 1 x RJ-45, 10/100 Mbps self-adaptive
- Network Protocols: TCP/IP, RTSP, RTP, SIP and ONVIF
- Lock Control: 2 relays, maximum 30 VDC, 2 A
- User Capacity: 2,000 users
- Linked Indoor Stations: Up to 1,000
- Sub Door Stations: Up to 99
- Power Supply: 12 VDC, 1.5 A or IEEE 802.3af standard PoE
- Power Consumption: 5 W maximum
- Material: Stainless steel
- Installation: Surface or flush mounting
- Protection Rating: IP65 and IK08
- Operating Temperature: -40°C to +60°C
- Buttons: Configurable for 0, 1 or 2 call buttons
- Dimensions (H x L x W): 98.5mm x 99.5mm x 34.7mm
- Weight: 0.26 kg
Key Features
- 5 MP camera with 3200 x 1800 resolution
- Stainless steel modular door station main unit
- Wide 134° horizontal field of view
- 100 dB WDR for improved performance in high-contrast scenes
- IR supplementary lighting for low-light operation
- Standard PoE or 12 VDC power options
- Two integrated relay outputs for lock control
- Supports surface and flush mounting
- IP65 weather resistance and IK08 impact protection
- Compatible with Hikvision KD8 modular intercom accessories
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical technician. Configure the IP network, PoE or 12 VDC supply, door contacts, exit buttons and lock-control wiring in accordance with the manufacturer's instructions and applicable Australian wiring requirements.
Applications
- Multi-residential apartment intercom systems
- Commercial building entry control
- Residential gated entrances
- Office and industrial access points
- Outdoor video intercom and door release installations
- Hikvision modular intercom systems requiring additional call, keypad, display or card-reader modules
Standards & Compliance
- AS/NZS 62676.1.1:2020 — relevant system requirements for video surveillance applications; product-specific certification is not stated in the reviewed datasheet
- AS/NZS IEC 60839.11.1:2019 — relevant requirements for electronic access-control systems and components; product-specific certification is not stated in the reviewed datasheet
- AS/NZS 3000:2018 — applicable to associated fixed electrical installation work, where relevant
Environmental Benefits
- Stainless steel construction provides corrosion resistance and extended service life, reducing replacement frequency
- Modular architecture allows individual modules or accessories to be replaced or upgraded without replacing the complete installation
- Standard PoE operation and maximum power consumption of 5 W support efficient low-voltage system design
- Durable IP65 and IK08 protection can reduce premature failure in outdoor installations
Warranty Information
Warranty is subject to Hikvision Australia warranty terms and the authorised distributor's purchase conditions. Hikvision Australia RMA documentation requires proof of purchase and applies warranty periods according to the relevant product or contract terms; confirm the applicable period at purchase.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional stock and distributor supply.
