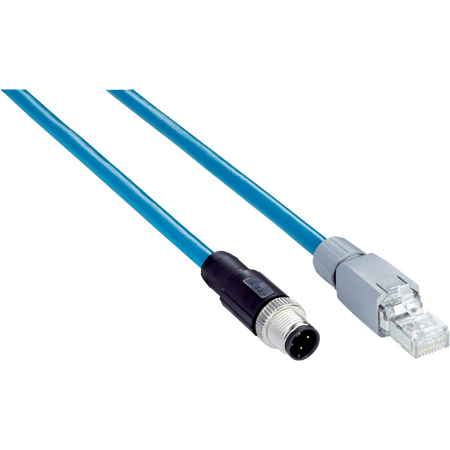

PROFINET Ethernet Cable M12 to RJ45 Shielded CAT5 10m Length by SICK

BRAND: SICK
SKU: 6050201
$324.30 List price: $407.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access

Alternatively Known As: PROFINET Ethernet Cable, M12 to RJ45 Cable, Industrial Ethernet Cable

Technical Specifications
  • Connection type head A: Male connector, M12, 4-pin, straight, D-coded
  • Connection type head B: Male connector, RJ45, 8-pin, straight
  • Locking nut material: Zinc die-cast, nickel-plated
  • Cable: 10 m, 4-wire, AWG26, PVC
  • Jacket material: PVC
  • Cable diameter: 6.4 mm
  • Shielding: Shielded
  • Reference voltage: 48 V AC / 60 V DC
  • Signal type: Ethernet, PROFINET
  • Transmission characteristics: CAT5
  • Data transmission rate: ≤ 100 Mbit/s
  • Dimensions (H x L x W): 10mm x 10000mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Male connector, M12, 4-pin, straight, D-coded on head A
  • Male connector, RJ45, 8-pin, straight on head B
  • Shielded CAT5 cable for reliable data transmission
  • 10 m length with 4-wire AWG26 PVC cable
  • Locking nut made of zinc die-cast, nickel-plated
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with industrial standards.
Applications
  • Industrial automation and control systems
  • Factory networking and communication
  • PROFINET Ethernet data transmission
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Complies with China RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

The SICK YM2D24-100EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and networking applications.
