Trade Discount 25%

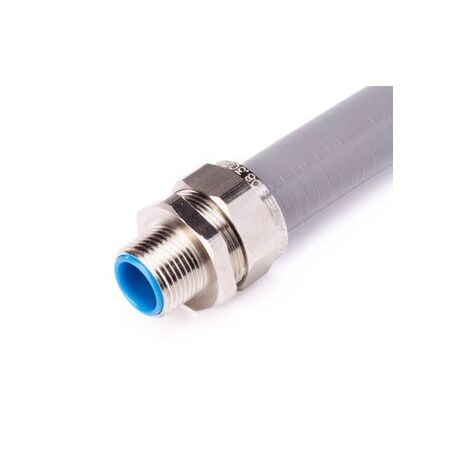

63mm Liquid Tight Conduit M63 IP66 Nickel-Plated Brass Cabac
Cabac Liquid Tight Conduit Fitting M63 External Male Thread IP66 Protection features nickel-plated brass finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: Nickel plated brass
- Hexagonal nut: Nickel plated brass
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M63 x 1.5
- Conduit size: 63mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 34mm x 20mm x 80mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass construction for superior durability
- External male thread for threaded entries and knockouts
- Dust proof and liquid tight seal providing mechanical and environmental protection
- High chemical resistance and mechanical strength
- One-piece installation with swivel fitting for easy use
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper sealing and compliance with hazardous area standards.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Warranty terms as per manufacturer standards; typically covers manufacturing defects.
Available Now
The Cabac Nickel Plated Brass Liquid Tight Straight Conduit Fitting M63 is available for immediate purchase, ideal for industrial and commercial wiring protection applications.
FAQ
Q: What conduit size is this liquid tight fitting designed for?
A: This fitting is designed for 63mm conduit and features an M63 x 1.5 external male thread.
Q: What applications is this fitting suitable for?
A: It is suitable for machining centres, robotics, OEM wiring, low fire hazard applications, underfloor office buildings, and narrow space static installations.
Pair this fitting with a liquid tight conduit fitting 90 degree where conduit routing requires a right-angle connection.
Add a liquid tight conduit fitting 45 degree to accommodate conduit direction changes in industrial installations.
Use an internal reducer fitting PVC when adapting conduit systems with different conduit sizes where required.
Read the conduit fittings Australia guide to better understand conduit fitting selection for industrial and commercial electrical installations.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
