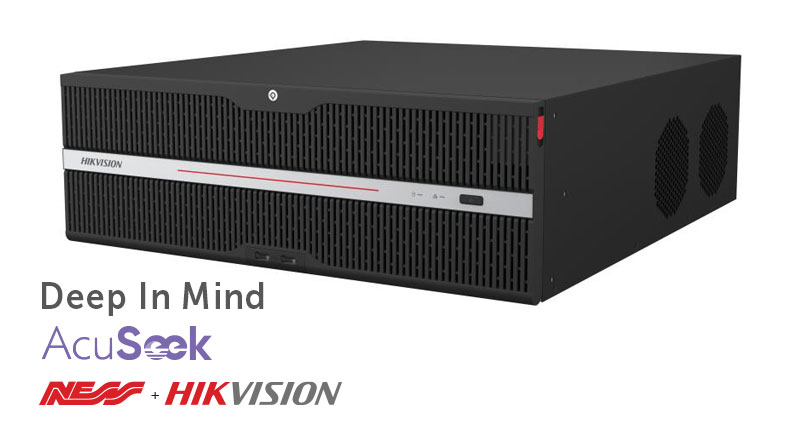

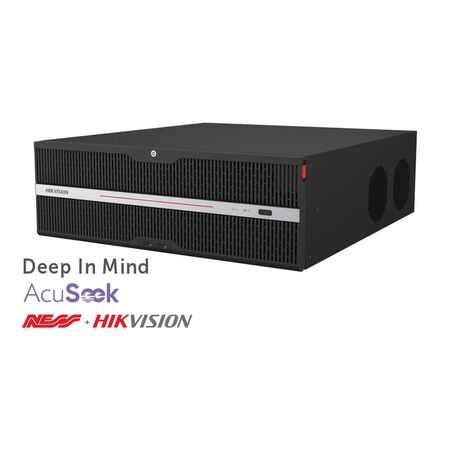

64 Channel NVR 16 SATA DeepInMind Pro Elite Hikvision
Hikvision 64 channel NVR features DeepInMind Pro and 16 SATA bays. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 64-Channel DeepinMind Pro NVR, 16-Bay AI NVR, iDS-9664NXI-P16 Elite NVR
Technical Specifications
- Model: iDS-9664NXI-P16
- IP Video Input: 64 channels, up to 32 MP resolution
- Incoming Bandwidth: 400 Mbps
- Outgoing Bandwidth: 400 Mbps
- Storage Interfaces: 16 SATA interfaces for 3.5-inch hard drives
- Maximum Storage: Up to 20 TB per hard drive
- External Storage: 1 eSATA interface
- RAID: RAID 0, 1, 5, 6 and 10
- Video Compression: H.265, H.265+, H.264 and H.264+
- Decoding Capability: Up to 2-channel 32 MP, 8-channel 8 MP or 32-channel 2 MP
- Display Outputs: HDMI 1 up to 8K at 30 Hz; HDMI 2 up to 4K at 60 Hz; dual VGA and CVBS
- AI Functions: Facial recognition, perimeter protection, video structuralisation, AcuSearch and AcuSeek
- Alarm Interfaces: 16 alarm inputs and 9 alarm outputs
- Network Interfaces: 2 × RJ-45 10/100/1000 Mbps Ethernet
- USB Interfaces: 2 × USB 2.0 front panel and 2 × USB 3.0 rear panel
- Power Supply: 100–240 VAC, 50–60 Hz
- Power Consumption: ≤50 W without hard drives
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10–90% relative humidity
- Certifications and Markings: CE, IC, CB, RoHS, REACH, WEEE, RCM, UKCA and LOA
- Dimensions (H x L x W): 146mm x 498mm x 442mm
- Weight: 12.5 kg
Key Features
- 64-channel IP camera recording and management
- Sixteen internal SATA bays for high-capacity surveillance storage
- Supports up to 320 TB raw storage capacity before RAID overhead when fitted with 20 TB drives
- RAID 0, 1, 5, 6 and 10 support for storage performance and redundancy
- DeepinMind Pro AI analytics with facial recognition, perimeter protection and video structuralisation
- AcuSeek and AcuSearch functions for target-based video retrieval
- 8K HDMI output for high-resolution control-room displays
- Dual independent display output groups using HDMI/VGA interfaces
- Supports HDD hot-swapping and professional 24/7 surveillance applications
- Compatible with ONVIF Profile S and G devices
Professional Installation Requirements
- Installation should be completed by a suitably qualified security systems integrator. Mains connection should be performed by a licensed electrician where required, and network cabling should comply with applicable Australian telecommunications cabling requirements. Configure ventilation, earthing, rack support and storage redundancy in accordance with the installation documentation.
Applications
- Large commercial CCTV systems
- Enterprise and multi-site security monitoring
- Government, transport and critical infrastructure surveillance
- Hospitals, universities, hotels and shopping centres
- Industrial, mining and warehouse security installations
- Control-room video walls and high-capacity 24/7 recording systems
Standards & Compliance
- RCM marking is specified by Hikvision for the product; applicable Australian/New Zealand electrical safety requirements include AS/NZS 62368.1 for audio, video and information and communications technology equipment
- Applicable Australian/New Zealand EMC requirements include AS/NZS CISPR 32 for multimedia equipment emissions
Environmental Benefits
- RoHS and REACH markings support restrictions on hazardous substances and responsible chemical management
- WEEE marking supports appropriate end-of-life treatment and recycling of electronic equipment
- RAID and high-capacity storage support extended system operation and may reduce replacement frequency
- H.265+ video compression can reduce storage requirements and associated hard-drive energy consumption compared with less efficient codecs
Warranty Information
Hikvision Australia lists DeepinMind Series network video recorders within its five-year warranty programme for eligible premium project-oriented products manufactured after 1 March 2022. Confirm eligibility, region and purchase channel at the time of supply.
Available Now
Available through Hikvision and authorised Australian security technology distributors, subject to regional model and firmware availability.
