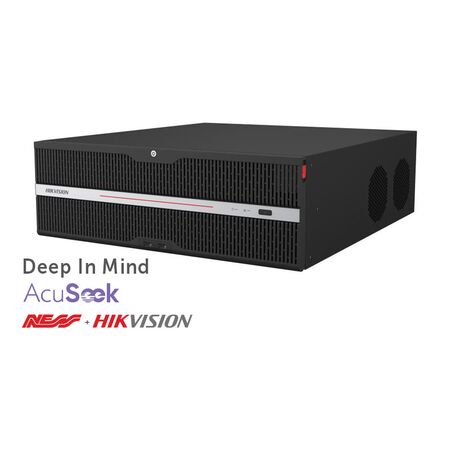

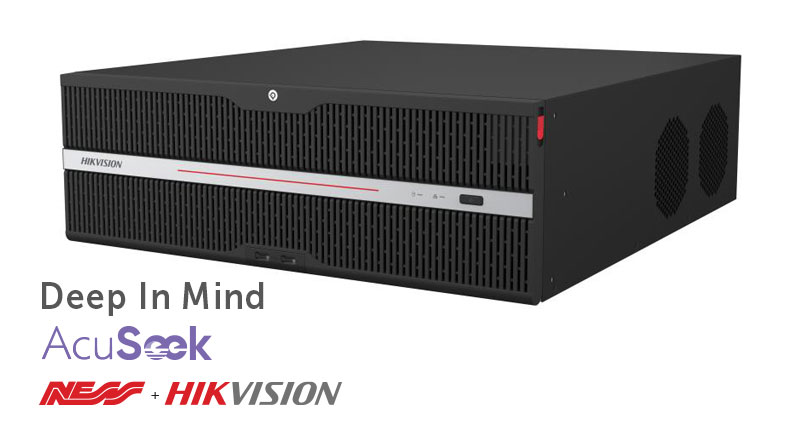

64 Channel NVR 8 SATA DeepInMind Pro Elite Hikvision
Hikvision 64 channel NVR features DeepInMind Pro and 8 SATA bays. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 64-Channel AI NVR, DeepinMind Pro NVR, AcuSeek NVR, 8-SATA Network Video Recorder
Technical Specifications
- Model: iDS-9664NXI-P8
- NVR Series: DeepinMind Pro Elite
- IP Camera Capacity: Up to 64 channels
- Maximum Camera Resolution: Up to 32MP
- Video Compression: H.265+, H.265, H.264+ and H.264
- Incoming Bandwidth: Up to 400 Mbps
- Outgoing Bandwidth: Up to 400 Mbps
- Storage Interfaces: 8 x SATA for 3.5-inch HDDs
- Maximum HDD Capacity: Up to 20TB per HDD
- RAID Support: RAID 0, 1, 5, 6 and 10
- eSATA: 1 interface
- Network Interfaces: 2 x RJ45 10/100/1000 Mbps Ethernet
- HDMI Output: Up to 8K at 30Hz on primary output
- USB Interfaces: 2 x USB 2.0 front and 2 x USB 3.0 rear
- Alarm Input/Output: 16 inputs and 9 outputs
- Serial Interfaces: 1 x RS-232 and 1 x RS-485
- Power Supply: 100-240VAC, 50-60Hz
- Power Consumption: Up to 50W without HDD
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10-90% RH, non-condensing
- Obtained Certifications: CE, IC, CB, RoHS, REACH, WEEE, RCM, UKCA and LOA
- Dimensions (H x L x W): 146mm x 498mm x 442mm
- Weight: 8 kg
Key Features
- 64-channel IP camera recording for large surveillance installations
- DeepinMind Pro recorder-side AI processing
- AcuSeek and AcuSearch intelligent video search functions
- Human and vehicle target classification
- Perimeter protection and video structuralisation capabilities
- Eight SATA bays for high-capacity local storage
- RAID support for storage redundancy and improved data resilience
- Supports high-resolution cameras up to 32MP
- Rack-mount form factor for security rooms and equipment cabinets
- Compatible with ONVIF, Hik-Connect and HikCentral platforms
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical professional. Mains connection, rack mounting, network configuration, storage installation and commissioning should follow manufacturer instructions and applicable Australian requirements. Security equipment installation licensing requirements may apply depending on the state or territory.
Applications
- Commercial and enterprise CCTV systems
- Government and public infrastructure surveillance
- Shopping centres and retail precincts
- Universities, hospitals and multi-building campuses
- Transport hubs, logistics facilities and industrial sites
- Centralised security control rooms
- High-capacity IP video recording and forensic search installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance systems for security applications, system requirements - general
- AS/NZS 62676.1.2:2020 - Video surveillance systems, performance requirements for video transmission
- AS/NZS 62676.4:2020 - Video surveillance systems, application guidelines
- RCM marking is specified by the manufacturer for the Australian market
Environmental Benefits
- Recorder-side AI processing can reduce reliance on additional analytics servers and associated energy consumption
- RAID support can improve data resilience and extend system service life by reducing the impact of individual drive failures
- RoHS and WEEE declarations support restricted-substance management and end-of-life recycling practices
- Rack-mounted design supports long-term integration into maintainable enterprise surveillance infrastructure
Warranty Information
Hikvision Australia lists DeepinMind Series network video recorders within its premium project-oriented products covered by a five-year manufacturer warranty for eligible products manufactured after 1 March 2022. Warranty eligibility depends on purchase channel, region and product status.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
