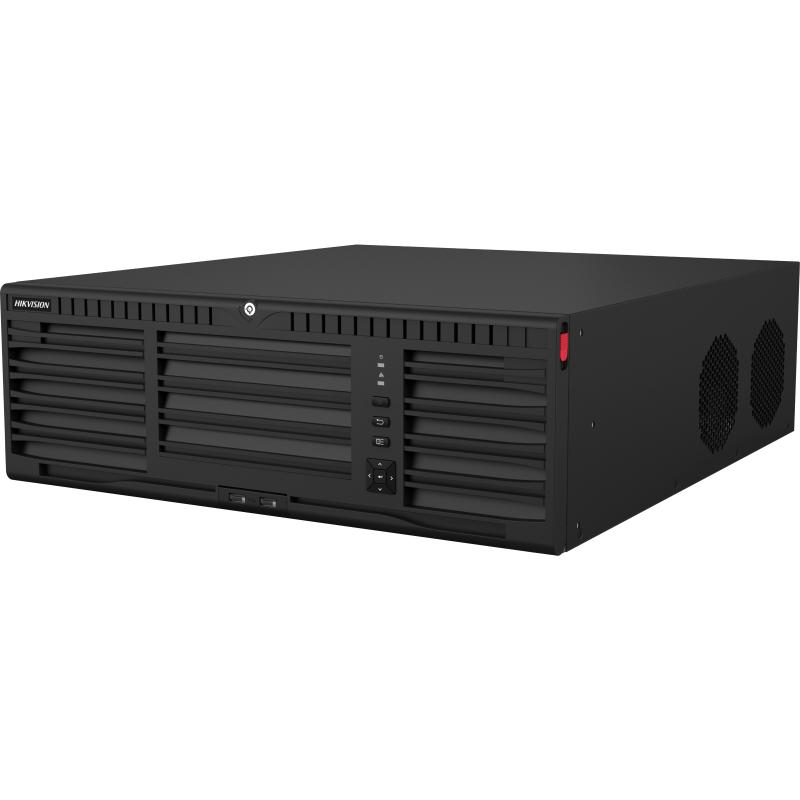

64CH NVR HIKVISION M-SERIES | 400Mbps Bandwidth | 8K Video Output | 16 Bay | by HIKVISION
The 64CH NVR HIKVISION M-SERIES is designed for high-capacity surveillance, supporting up to 64 IP camera inputs with a robust 400Mbps bandwidth. Ideal for large-scale commercial and industrial applications, it features dual HDMI and VGA outputs for 8K or dual 4K video. With advanced streaming technology and RAID support, this NVR ensures reliable performance and data integrity for security monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 64CH NVR HIKVISION M-SERIES | 400Mbps Bandwidth | 8K Video Output | 16 Bay | by HIKVISION
Brand: HIKVISION
SKU: DS-9664NI-M16
Alternatively Known As: 64 Channel Network Video Recorder, 64CH NVR, 8K NVR, 16 Bay NVR, HIKVISION Ultra Series NVR
Technical Specifications
- Up to 64 IP camera inputs
- Decoding capacity: 2-ch@32 MP, 2-ch@24 MP, 4-ch@12 MP, 8-ch@8 MP, 16-ch@4 MP, 32-ch@1080p
- Incoming bandwidth: 400 Mbps
- Outgoing bandwidth: 400 Mbps
- Video outputs: 2 HDMI (different source), 2 VGA (different source), supporting 8K or dual 4K
- Supports special cameras: people counting, ANPR, fisheye
- RAID support: 0, 1, 5, 6, 10, N+M hot spare
- Supports up to 8 IP speakers
- Dimensions (H x L x W): 132mm x 400mm x 445mm
- Weight: 10 kg
Key Features
- Supports up to 64 IP camera inputs
- Decoding capacity includes 2-ch@32 MP, 2-ch@24 MP, 4-ch@12 MP, 8-ch@8 MP, 16-ch@4 MP, 32-ch@1080p
- 400 Mbps incoming and outgoing bandwidth
- 2 HDMI and 2 VGA interfaces supporting 8K or dual 4K video outputs
- Compatible with special cameras including people counting, ANPR, and fisheye cameras
- Advanced streaming technology for smooth live view under poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for reliable data storage
- Supports connection of up to 8 IP speakers
Professional Installation Requirements
- Professional installation by a qualified security systems technician or licensed electrician is recommended to ensure proper setup and integration with existing network infrastructure.
Applications
- Surveillance for large-scale commercial and industrial sites
- Security monitoring in government and public facilities
- High-resolution video recording for retail and transportation hubs
- Integration with special cameras like ANPR and people counting for advanced analytics
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient data storage reduces energy consumption by optimizing RAID configurations
- Advanced streaming technology minimizes network load, reducing power usage
- Supports IP cameras which generally consume less power compared to analog systems
Warranty Information
5 years warranty provided by HIKVISION covering manufacturing defects and hardware failures.
Available Now
The HIKVISION M-SERIES 64CH NVR is available for immediate purchase, ideal for high-capacity surveillance and security monitoring applications.
