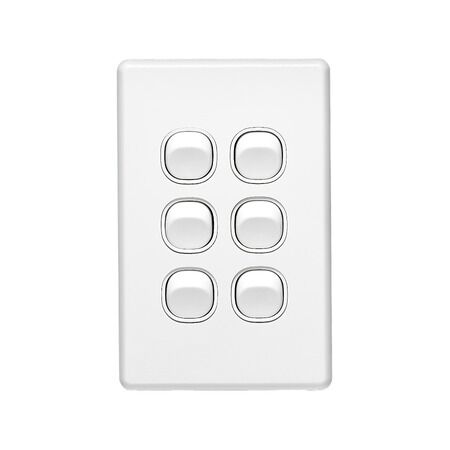

6G Switch Mechanism 10A Classic Vertical White Clipsal

BRAND: Clipsal
SKU: CLIC2036VAWE
$52.60 List price: $65.60
+ −
30 Days Return Electricians Unlock Trade Access
The Clipsal 6G Switch Mechanism 10A Classic Vertical White supports 6-gang vertical installation for multiple switching functions. It features a 10A rated current, 250V a.c. 50Hz operation and flush mounting. Dimensions (H x L x W): 30mm x 117mm x 76mm. Scroll down for the technical specifications and product details needed for installation planning.
Technical Specifications
  • Rated current: 10A
  • Operating voltage: 250V a.c. 50Hz
  • Device presentation: basic element with full cover plate and grid
  • Device mounting: flush
  • Number of rocker: 6
  • Fixing mode: by screws
  • Actuator: rocker
  • Standards: AS/NZS 60669.1
  • Dimensions (H x L x W): 30mm x 117mm x 76mm
  • Weight: 0.131 kg
Key Features
  • 6-gang vertical installation
  • Includes C2000 cover plate, grid, and switch mechanism
  • Rated current: 10A
  • Operating voltage: 250V a.c. 50Hz
Professional Installation Requirements
  • Requires installation by an appropriately licensed electrician.
Applications
  • Residential: Homes, apartments
  • Commercial: Offices, retail spaces
Standards & Compliance
  • Complies with AS/NZS 60669.1 for safety and performance standards.
Environmental Benefits
  • Packaging made with recycled cardboard
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Classic C2000 Series Flush Switch 6 Gang is available now for immediate purchase. Ideal for residential and commercial spaces.

FAQ

Q: What is the electrical rating of this Clipsal switch mechanism?
A: It has a 10A rated current and operates at 250V a.c. 50Hz.

Q: What type of installation is this switch mechanism designed for?
A: It is designed for flush mounting with a 6-gang vertical installation and is listed for residential homes, apartments and commercial spaces.


For a matching black option, use a 6G switch mechanism with a Classic vertical configuration.
Where a different switching arrangement is required, a 6G switch mechanism with a 2-way 1P configuration is also available.
For installations requiring a surface-mounted configuration, consider a 6G vertical light switch.

The switch amp rating guide can help when reviewing electrical ratings for switch selection.

Backed by SCHNAP's 30-day returns policy for added purchasing confidence.


C2036VA-WE (C2036VA-WE, 198 Kb) [Download]
