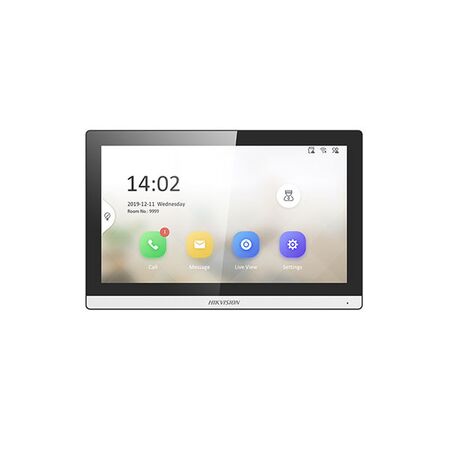

7 Inch Touch Screen Room Station Black Hikvision
Hikvision 7 Inch touch screen room station features a touch screen and black finish. Ideal for Hikvision intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 7-Inch IP Indoor Intercom Monitor, Hikvision KH6 Series Indoor Station, Video Intercom Room Station
Technical Specifications
- Model: DS-KH6350-WTE1
- Display: 7-inch colourful TFT screen
- Touchscreen: Capacitive touch
- Resolution: 1024 × 600 pixels
- Operating System: Embedded Linux
- Network: 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi
- Power Supply: 12 VDC, 1 A or IEEE 802.3af standard PoE
- Power Consumption: Maximum 5 W
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Compression: G.711 U and G.711 A at 64 Kbps
- Interfaces: RJ-45, RS-485, alarm terminals and TF card slot
- TF Card Support: Up to 128 GB
- Alarm Inputs: 8
- Alarm Outputs: 2
- Lock Control: 2 relays, maximum 30 VDC and 0.3 A
- Installation: Wall mounting or table mounting
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10% to 90% non-condensing
- Finish: Black
- Dimensions (H x L x W): 113.5mm x 21mm x 175mm
- Weight: 0.355 kg
Key Features
- 7-inch colour capacitive touchscreen for visitor communication and system control
- Supports Hik-Connect mobile control for remote answering, live viewing and door release
- Standard PoE simplifies network connection and power delivery
- Wi-Fi connectivity for compatible intercom network configurations
- Supports live viewing from linked door stations and cameras
- Stores messages and captured images on a compatible TF card
- Supports alarm linkage and notification functions
- Provides two relay outputs for compatible lock-control applications
- Suitable for wall-mounted or table-mounted indoor installations
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications technician. Configure the unit with compatible Hikvision door stations, network equipment and lock-control hardware; fixed wiring and access-control connections must comply with applicable Australian electrical and telecommunications requirements.
Applications
- Residential video intercom systems
- Apartment and townhouse entry systems
- Office and commercial access-control systems
- Gated entry and visitor-management installations
- Indoor monitoring of Hikvision door stations and linked cameras
Standards & Compliance
- AS/NZS 62368.1:2018 may apply to the safety of the audio/video and information and communication technology equipment; product-specific Australian conformity documentation should be confirmed before installation.
- AS/NZS 62676 series may be relevant where the unit forms part of a broader electronic security or video surveillance installation; no product-specific compliance declaration was located.
Environmental Benefits
- Low maximum power consumption of 5 W supports reduced operating energy use
- PoE connectivity can reduce separate power cabling and associated installation materials
- Durable fixed-installation design may reduce replacement frequency and electronic waste
- Electronic components should be recycled through an approved e-waste recycling service at end of life
Warranty Information
3-year manufacturer warranty is stated by Australian distributor listings; warranty applies subject to Hikvision Australia and authorised-distributor terms.
Available Now
Available through Hikvision and authorised Australian security, intercom and electronic-security distributors; stock status varies by distributor.
