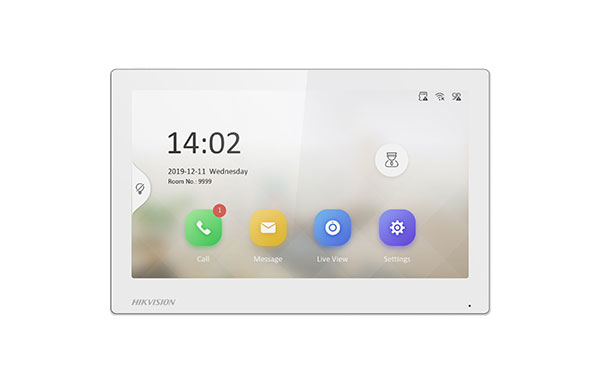

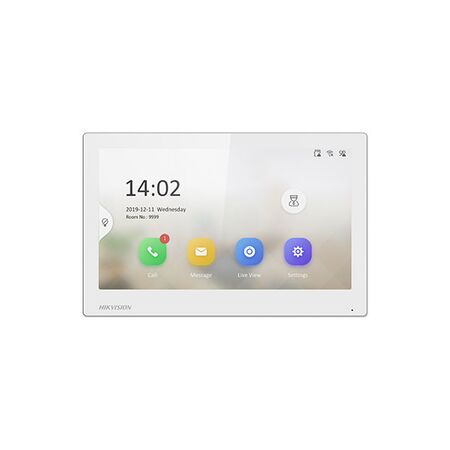

7 Inch Touch Screen Room Station White Hikvision
Hikvision 7 Inch touch screen room station features a touch screen and white finish. Ideal for Hikvision intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 7-Inch Indoor Station, Hikvision IP Video Intercom Monitor, DS-KH6320-WTE1-W
Technical Specifications
- Model: DS-KH6320-WTE1
- Display: 7-inch colourful TFT LCD
- Display Resolution: 1024 × 600
- Touchscreen: Capacitive touch operation
- Operating System: Embedded Linux
- Network: 10/100 Mbps Ethernet and Wi-Fi 802.11 b/g/n
- Protocols: TCP/IP, SIP and RTSP
- Power Supply: IEEE 802.3af standard PoE or 12 VDC/1 A
- Power Consumption: ≤ 6 W
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Codec: G.711 U at 64 Kbps
- Alarm Inputs: 8 channels
- Relay Outputs: 2
- TF Card: Supports up to 32 GB
- Installation: Surface mounting
- Operating Temperature: -10 °C to 55 °C
- Operating Humidity: 10% to 90%, non-condensing
- Finish: White
- Dimensions (H x L x W): 140mm x 200mm x 15.1mm
- Weight: 0.355 kg
Key Features
- 7-inch capacitive touchscreen for indoor intercom operation
- Supports two-way audio with noise suppression and echo cancellation
- Displays live video from compatible Hikvision door stations and linked cameras
- Remote door unlocking through compatible client software or mobile application
- Standard PoE simplifies low-voltage network installation
- Built-in Wi-Fi connectivity for compatible network configurations
- Stores messages and captured images on a TF card
- Supports up to five linked indoor extensions and eight linked doorphones
Professional Installation Requirements
- Installation and configuration should be performed by a qualified security or intercom technician. Any connection to mains-powered equipment or a separate 12 VDC power supply must comply with applicable Australian electrical requirements and be completed by a licensed electrician where required.
Applications
- Residential video intercom systems
- Apartment and multi-dwelling access systems
- Office and commercial entry systems
- Hikvision IP video intercom installations
- Indoor monitoring of compatible door stations and security cameras
Standards & Compliance
- AS/NZS 62368.1:2022 or current edition: relevant safety standard for audio, video, information and communication technology equipment; confirm product-specific conformity and RCM documentation for the supplied Australian SKU
Environmental Benefits
- Low power consumption of up to 6 W supports reduced operating energy use
- Durable electronic indoor-station design can reduce replacement frequency and associated equipment waste
Warranty Information
Hikvision warranty applies when the product is purchased through an authorised Australian distribution channel. The exact warranty period is subject to the current product terms and purchase contract; retain the invoice and serial number for warranty assessment.
Available Now
Available through Hikvision and authorised Australian security, intercom and electrical distributors, subject to distributor stock.
