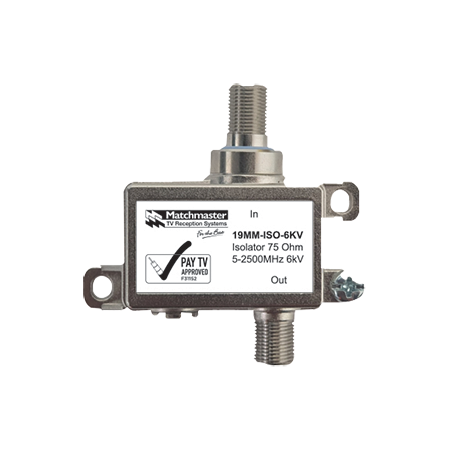

75 Ohm RF Isolator | 5-2500MHz | 6kV High Voltage | Metal Casing by Matchmaster

BRAND: Matchmaster

SKU: 19MM-ISO-6KV

$59.70 List price: $72.20

+ −

30 Days Return Delivery Options

75 Ohm RF isolator with 5-2500MHz frequency range and 6kV high voltage isolation—ideal for telecommunications and broadcasting. Built for signal integrity, with durable metal casing and professional-grade performance.

Description
Attachments

Product Name/Title: 75 Ohm 5-2500MHz 6kV Isolator

Brand: Matchmaster

SKU: 19MM-ISO-6KV

Alternatively Known As: 6kV Coaxial Surge Protector, Satellite Building Isolator, 75 Ohm Coaxial Isolator

Technical Specifications

Surge Protection: Category A3 6kV surge protector
Frequency Range: 5-2500MHz
Connector Type: F-type ports
Housing: Compact die-cast with earthing terminal
Input Fitting: Plastic isolated F-type for network side
Dimensions (H x L x W): 20mm x 70mm x 50mm
Weight: 0.2 kg

Key Features

Foxtel approved (F31152) building isolator for satellite solutions
Output withstands IEEE C62.41-1991 category A3 surge 6kV
5-2500MHz frequency rating with F-type ports for easy connection
Compact die-cast housing with earthing terminal included
Plastic isolated F-type fitting for network side input

Professional Installation Requirements

Professional installation by a qualified technician is recommended to ensure proper grounding and optimal surge protection.

Applications

MATV and SMATV 75 Ohm coaxial systems
Building isolation linked by underground coaxial cabling
Satellite Multi Stacker (SMS) backbone or five-wire solutions

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Protects electronic equipment from surge damage, reducing electronic waste
Durable die-cast housing extends product lifespan

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster 75 Ohm 5-2500MHz 6kV Isolator is available now for immediate purchase. Ideal for satellite and coaxial system protection in residential and commercial buildings.

Brochure (19mm-iso-6kv_brochure.pdf, 183 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
