Trade Discount 25%

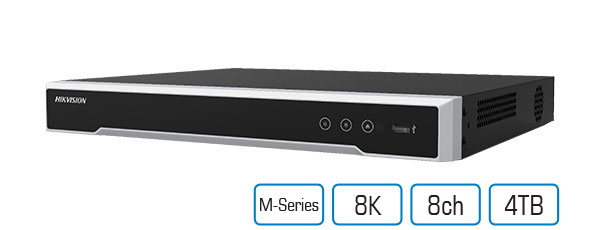

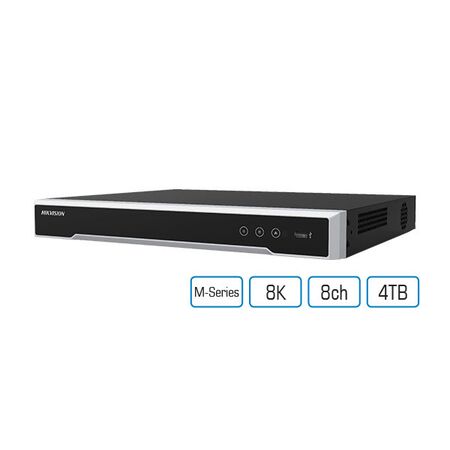

8 Channel M-Series NVR with 4TB HDD Hikvision
Hikvision M-Series NVR features 8 channels and a 4TB HDD. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision M-Series NVR, 8-channel PoE NVR, 8K network video recorder, DS-7608NI-M2/8P-4TB
Technical Specifications
- Model: DS-7608NI-M2/8P
- NVR Series: M-Series 8K
- IP Video Inputs: 8 channels, up to 32 MP resolution
- Incoming Bandwidth: 128 Mbps
- Outgoing Bandwidth: 256 Mbps
- Decoding Capability: Up to 8-channel 8 MP or 2-channel 32 MP
- Video Compression: H.265+/H.265/H.264+/H.264
- HDMI Output: Up to 8K at 30 Hz
- VGA Output: Up to 1920 × 1080 at 60 Hz
- PoE Ports: 8 × RJ45, 10/100 Mbps
- Network Interface: 1 × RJ45, 10/100/1000 Mbps
- Storage: 2 × SATA interfaces, supplied with 1 × 4TB HDD
- Synchronous Playback: 8 channels
- Power Supply: 100–240 VAC, 50/60 Hz
- Maximum PoE Power: 120 W
- Operating Temperature: -10°C to 55°C
- Certifications and Environmental Markings: CE, FCC, RoHS and REACH
- Dimensions (H x L x W): 52mm x 385mm x 315mm
- Weight: 3.7 kg
Key Features
- Eight-channel IP video recording for CCTV and security installations
- Eight integrated PoE ports for direct connection of compatible IP cameras
- 8K HDMI output for high-resolution monitoring
- Supports camera streams up to 32 MP
- H.265+ compression can reduce storage requirements compared with conventional H.264 recording
- Two SATA bays support storage expansion beyond the included 4TB HDD
- Eight-channel synchronous playback
- Hik-Connect and DDNS support for remote management
- Independent HDMI and VGA video outputs
- Supports VCA functions including motion, line crossing, intrusion detection, heat maps, ANPR and people counting
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security or CCTV technician. Any fixed mains electrical connection must be completed by a licensed electrician in accordance with applicable Australian wiring requirements. Configure network access securely and follow Hikvision installation instructions.
Applications
- Residential CCTV systems
- Small commercial security installations
- Retail and office surveillance
- Industrial and warehouse monitoring
- Remote video monitoring systems
- Small hospitality and access-control environments
Standards & Compliance
- Applicable to video surveillance system design and application guidance under AS/NZS 62676.1.1:2020 and AS/NZS 62676.4:2020; installation-specific compliance should be confirmed by the system designer or installer
- Electrical installation and mains connection requirements should be assessed against AS/NZS 3000 where applicable
Environmental Benefits
- H.265+ compression can reduce recording storage requirements and associated energy use compared with less efficient codecs
- The two-bay storage design supports future capacity expansion and may extend the usable service life of the recorder
- RoHS and REACH markings support restrictions on hazardous substances and improved end-of-life material management
- A durable, continuously operating recorder can reduce replacement frequency and electronic waste when correctly maintained
Warranty Information
Hikvision NVRs supplied through authorised Australian distribution are generally covered by a 3-year manufacturer warranty; confirm the final warranty terms with the supplying distributor. The included surveillance HDD may have separate warranty coverage.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to distributor stock and regional model availability.
