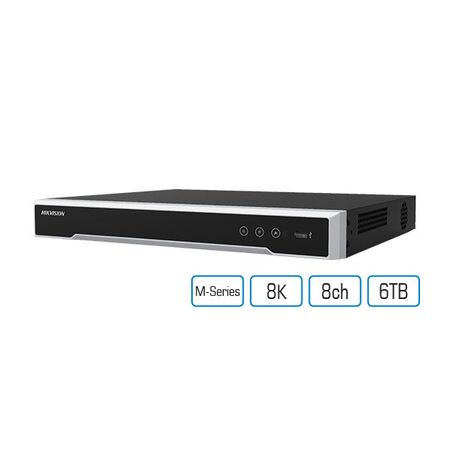

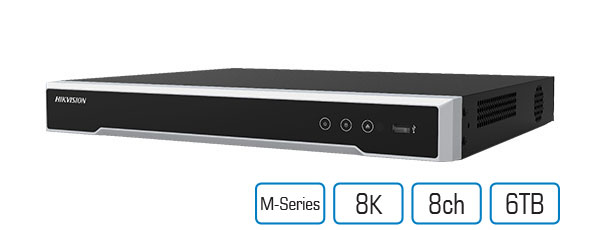

8 Channel M-Series NVR with 6TB HDD Hikvision
Hikvision M-Series NVR features 8 channels and a 6TB HDD. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DS-7608NI-M2/8P-6TB, Hikvision 8-Channel Network Video Recorder, M-Series 8K NVR, 8-Port PoE NVR
Technical Specifications
- Channels: 8 IP camera inputs
- PoE: 8 independent PoE network ports
- Maximum Camera Resolution: Up to 32MP
- Incoming Bandwidth: 128Mbps
- Outgoing Bandwidth: 256Mbps
- Video Compression: H.265+, H.265, H.264+ and H.264
- HDMI Output: Up to 8K at 30Hz
- VGA Output: Up to 1920 × 1080 at 60Hz
- Storage: 6TB HDD included; supports up to 2 SATA HDD interfaces
- Synchronous Playback: 8 channels
- Network Interface: 1 × 10/100/1000Mbps Ethernet port
- PoE Standard: IEEE 802.3af/at
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% relative humidity
- Power Supply: 100–240V AC
- Certifications: CE and FCC; RoHS and REACH listed for the product series
- Dimensions (H x L x W): 52mm x 317mm x 384mm
- Weight: 3.6 kg
Key Features
- Eight-channel IP video recording for CCTV and security installations
- Eight built-in PoE ports for direct connection and power supply to compatible IP cameras
- Supports camera inputs up to 32MP resolution
- 8K HDMI output for high-resolution local monitoring
- H.265+ compression can reduce storage requirements compared with conventional H.264 recording
- Supports motion detection, line crossing, intrusion detection, ANPR, heat mapping and people counting through compatible cameras
- Independent HDMI and VGA display outputs
- Remote access through Hik-Connect and web-based management
- Two SATA interfaces allow additional internal storage expansion
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or electrical installer. Mains connection, PoE cabling, network configuration and CCTV commissioning should follow manufacturer instructions, applicable electrical requirements and AS/NZS 62676 installation guidance.
Applications
- Residential CCTV surveillance systems
- Small commercial security installations
- Retail stores and offices
- Warehouses and industrial facilities
- Multi-camera IP surveillance systems
- Remote security monitoring and video verification
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance systems for security applications, general system requirements
- AS/NZS 62676.1.2:2020 – Video transmission performance requirements
- AS/NZS 62676.2.1:2020 – Video transmission protocols for IP surveillance devices
- AS/NZS 62676.4:2026 – Application guidance for planning, installation, commissioning, maintenance and testing of video surveillance systems
Environmental Benefits
- H.265+ video compression can reduce storage requirements and associated HDD energy consumption compared with less efficient codecs
- Supports extended system life through expandable two-drive storage architecture
- RoHS and REACH declarations for the product series support restriction of certain hazardous substances
- Reduced cabling requirements are possible because compatible cameras can receive data and power through the integrated PoE ports
Warranty Information
Hikvision NVRs supplied through authorised Australian channels are generally covered by a 3-year back-to-base manufacturer warranty; the included HDD may have a separate, shorter warranty period. Confirm coverage with the authorised distributor for the supplied 6TB configuration.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors, subject to regional stock and current model availability.
