8 Port Managed PoE Switch | 110W Power Budget | VLAN Support & PoE Watchdog | by HIKVISION

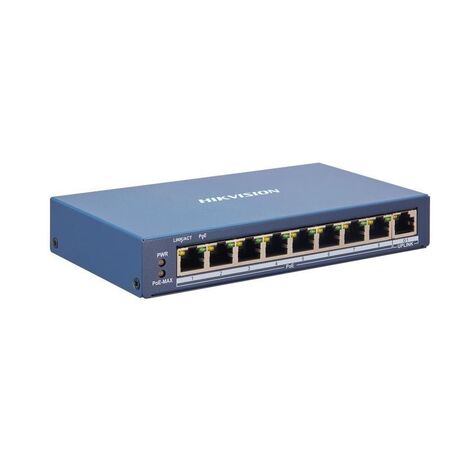

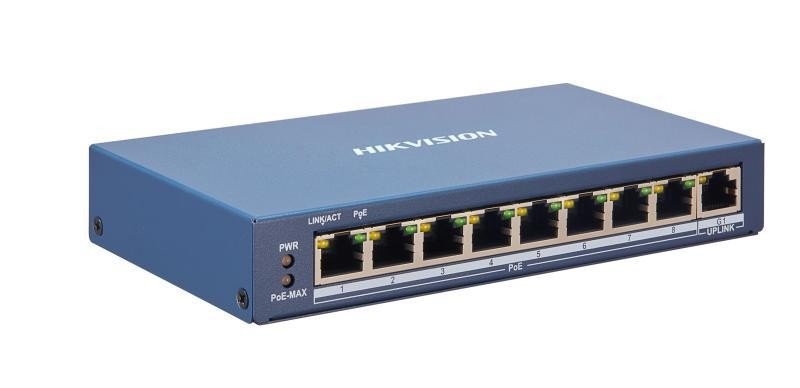

The 8 Port Managed PoE Switch from HIKVISION offers 8 × 10/100M PoE ports and 1 × Gigabit RJ45 uplink, making it ideal for surveillance camera networks and small to medium business infrastructures. With a total PoE power budget of 110W and features like VLAN support and PoE watchdog, it ensures reliable power and data transmission while enhancing network efficiency and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 8 Port Managed PoE Switch | 110W Power Budget | VLAN Support & PoE Watchdog | by HIKVISION
Brand: HIKVISION
SKU: DS-3E1309P-EI
Alternatively Known As: HIKVISION 8 Port PoE Switch, Managed PoE Network Switch, 3E1309P-EI PoE Switch
Technical Specifications
- Ports: 8 × 10/100M PoE ports, 1 × Gigabit RJ45 uplink port
- Total PoE Power Budget: 110 W
- VLAN Support: 802.1Q
- PoE Watchdog: Detects and restarts unresponsive cameras
- Loop Prevention: Supports STP/RSTP
- Cable Detection: Locates network failures
- Long Range PoE Transmission: Up to 300 m
- Surge Protection: 6 kV
- Dimensions (H x L x W): 45mm x 140mm x 220mm
- Weight: 1.2 kg
Key Features
- 8 × 10/100M PoE ports and 1 × Gigabit RJ45 uplink port
- Total PoE power budget of 110 W
- Supports 802.1Q VLAN for network segmentation
- PoE watchdog feature to detect and restart unresponsive cameras
- STP/RSTP support for loop prevention
- Cable detection to locate network failures
- Up to 300 m long range PoE transmission
- 6 kV surge protection for enhanced device safety
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper configuration and safety compliance.
Applications
- Surveillance camera networks requiring PoE power and data transmission
- Small to medium business network infrastructure
- Security system installations with long-range PoE needs
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports energy-efficient PoE technology reducing the need for separate power supplies
- Long range PoE transmission reduces the need for additional network devices and cabling
Warranty Information
2 years warranty from the manufacturer covering defects and hardware failures.
Available Now
The HIKVISION Transmission 3E1309P-EI 8 Port Managed PoE Switch is available for immediate purchase, ideal for network and surveillance system installations requiring reliable PoE power and data management.
