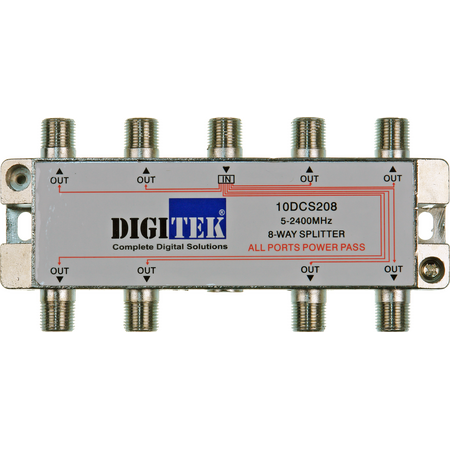

8 Way F Type Splitter | 5-2400MHz | All Leg Power Pass | Compact Design by Bitek
8-way F type splitter with 5-2400MHz frequency range and power pass on all legs—ideal for residential and commercial signal distribution. Built for multiple connections, with efficient design to reduce signal loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digitek 8 Way 5-2400MHZ F Type Splitter - All Leg Power Pass - 10DCS208
Brand: Bitek
SKU: 10DCS208
Alternatively Known As: 8 Way F Type Splitter, Multiport F Type Splitter
Technical Specifications
- Input/Output: 8-way F-type connection
- Frequency Range: 5-2400MHz
- Power Passing: Yes on all legs
- Insertion Loss: ≤ 8.5 dB
- Isolation: ≥ 25 dB
- Return Loss: ≥ 20 dB
- Dimensions (H x L x W): 100mm x 50mm x 150mm
- Weight: 0.5 kg
Key Features
- 8-way distribution allowing for multiple connections.
- Power pass on all legs for active amplifiers.
- Wide frequency range from 5 to 2400MHz.
Professional Installation Requirements
- Installation by a qualified technician recommended for optimal performance.
Applications
- Residential: Homes with multiple cable connection needs.
- Commercial: Office buildings and retail spaces requiring split signals.
- General: Any installation needing signal distribution for televisions.
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Efficient design reduces signal loss and enhances performance, promoting longer device life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Digitek 8 Way 5-2400MHz F Type Splitter - All Leg Power Pass - 10DCS208 is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable signal distribution.
