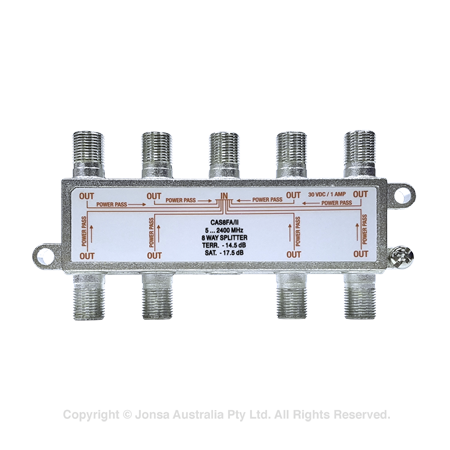

8 Way F Type Splitter 5-2400MHz | Power Pass All Ports | Low Insertion Loss by Jonsa
8 way F type splitter with 5-2400 MHz frequency range and power pass on all ports—ideal for residential and commercial signal distribution. Built for efficient broadcasting, with low insertion loss and high isolation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SPLITTER 8 WAY F TYPE 5-2400MHZ P/P ALL
Brand: Jonsa
SKU: CAS8FA/II
Alternatively Known As: 8 Way Splitter, F Type Splitter, Coaxial Splitter
Technical Specifications
- Frequency Range: 5-2400 MHz
- Insertion Loss: ≤ 12.0 dB (5–40 MHz), ≤ 12.5 dB (40–1000 MHz), ≤ 14.0 dB (1000–1750 MHz), ≤ 15.5 dB (1750–2050 MHz), ≤ 16.5 dB (2050–2400 MHz)
- Isolation: ≥ 18 dB across all frequency ranges
- Input Return Loss: ≥ 10 dB across all frequency ranges
- Output Return Loss: ≥ 10 dB across all frequency ranges
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- Insertion loss IN-OUT: ≤ 12.0 dB (5–40 MHz)
- Isolation OUT-OUT: ≥ 18 dB (5–2400 MHz)
- Power pass: All ports
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Residential: Homes, apartments, and entertainment systems
- Commercial: Offices, retail spaces, and broadcasting
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient signal distribution reduces energy waste in broadcasting.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Jonsa 8 Way F Type Splitter 5-2400MHz is available now for immediate purchase. Ideal for residential and commercial applications.
