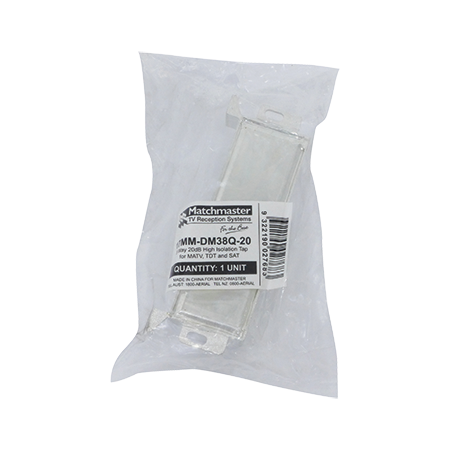

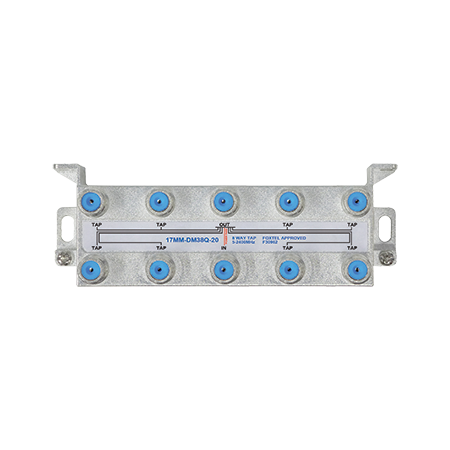

8 Way High Isolation Tap | 20dB | MATV, TDT & Satellite | F-Type by Matchmaster
8 way high isolation tap with 20dB isolation and F-Type connectors—ideal for MATV, TDT, and satellite systems. Built for residential and commercial use, ensuring minimized signal interference and efficient distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency range: 5-2400MHz
- Insertion Loss (IN-OUT): 5-40MHz ≤4.0dB, 40-692MHz ≤4.5dB, 692-1000MHz ≤5.0dB, 1000-1500MHz ≤5.5dB, 1500-1860MHz ≤6.0dB, 1860-2400MHz ≤6.5dB
- Tap Loss (IN-TAP): 5-40MHz 17.5±2.0dB, 40-692MHz 17.5±2.0dB, 692-1000MHz 17.5±2.0dB, 1000-1500MHz 18.0±2.5dB, 1500-1860MHz 19.0±2.5dB, 1860-2400MHz 20.0±2.5dB
- Reverse Isolation (OUT-TAP): ≥25dB to ≥30dB depending on frequency range
- Mutual Isolation (TAP-TAP): ≥25dB to ≥30dB depending on frequency range
- Return Loss (IN/OUT/TAP): ≥10dB across all frequencies
- Dimensions (H x L x W): 40mm x 120mm x 100mm
- Weight: 0.3 kg
Key Features
- Pay TV approved F30962
- Return loss ≥10dB
- Tap loss 20dB
- Frequency range 5-2400MHz
- Power pass input to output
- Can be mounted vertical or horizontal for ease of installation
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper signal distribution and compliance with safety standards.
Applications
- Satellite TV distribution systems
- Terrestrial TV (TDT) signal distribution
- MATV (Master Antenna Television) systems
- Pay TV installations requiring high isolation taps
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 8 Way 20dB High Isolation Tap is available now for immediate purchase. Ideal for satellite, MATV, and terrestrial TV signal distribution applications.
