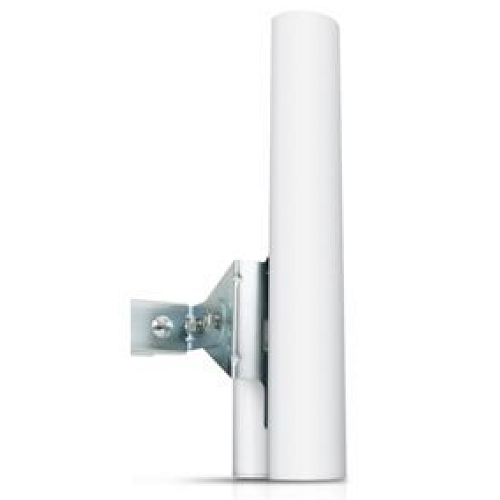

AirMax Base Station 4.9-5.9GHz 2x2 MIMO 17dBi Gain Ness
Ness AirMax base station features 4.9-5.9GHz operation, 2x2 MIMO, 17dBi gain and dual linear polarisation. Ideal for wireless network links.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AM-5G17-90, airMAX 5G17-90, 17 dBi 90° Sector Antenna, 2x2 MIMO Base Station Antenna
Technical Specifications
- Model: AM-5G17-90
- Frequency Range: 4.90–5.85 GHz
- Antenna Gain: 16.1–17.1 dBi
- MIMO Configuration: 2x2
- Polarisation: Dual-linear
- Horizontal Beamwidth: 72° at 6 dB
- Vertical Beamwidth: 93° at 6 dB
- Electrical Beamwidth: 8°
- Electrical Downtilt: 4°
- Maximum VSWR: 1.5:1
- Cross-Polarisation Isolation: 22 dB minimum
- Wind Survivability: 200 km/h
- Wind Loading: 41.7 N at 200 km/h
- Mounting: Universal pole mount with RocketM bracket and weatherproof RF jumpers
- ETSI Specification: EN 302 326 DN2
- Dimensions (H x L x W): 367mm x 63mm x 41mm
- Weight: 1.1 kg
Key Features
- Designed for airMAX point-to-multipoint wireless networks
- 2x2 MIMO operation with simultaneous horizontal and vertical polarisation
- 17 dBi-class gain across the 4.9–5.85 GHz operating range
- 90° sector coverage configuration
- Compatible with Ubiquiti Rocket radios
- Outdoor-rated construction for mast and pole installation
- Includes universal pole mount, RocketM bracket and weatherproof RF jumpers
Professional Installation Requirements
- No special electrical licensing is indicated for the passive antenna. Outdoor mast mounting, RF alignment and connection to the associated radio should be completed by a competent telecommunications installer in accordance with site, structural and ACMA requirements.
Applications
- Outdoor wireless internet service provider base stations
- Point-to-multipoint broadband distribution
- Commercial and industrial wireless network links
- Campus, rural and remote-area network coverage
- Sector-based 5 GHz wireless backhaul and access networks
Standards & Compliance
- AS/NZS 4268:2017 may apply to the radio equipment system operating with this antenna; confirm the complete radio-and-antenna configuration against current ACMA requirements before deployment.
- ACMA radiocommunications, electromagnetic compatibility and equipment labelling requirements apply to the associated transmitting radio; the antenna itself is a passive component.
Environmental Benefits
- Enables wireless network deployment where new wired cabling or trenching may otherwise be required
- Durable outdoor construction can support extended service life and reduce replacement waste
- Compatible with replaceable Ubiquiti Rocket radios, allowing the antenna infrastructure to remain in service when the radio is upgraded
Warranty Information
Ness Corporation states that Ness manufactured or supplied products are covered for 3 years from the date of purchase, subject to its published warranty conditions. Confirm whether the supplied Ubiquiti product is covered directly by Ness or under the manufacturer's separate warranty terms. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness and authorised Australian networking and telecommunications distributors; confirm current stock and regional supply before ordering.
