AJAX FIREPROTECT 2 AC 240V Heat & Smoke Detector | Dual-Spectrum Sensor | 85 dB Siren | by Dicker Data
AJAX FIREPROTECT 2 AC 240V Heat and Smoke Detector is designed for reliable fire safety in residential and commercial settings. Featuring a dual-spectrum optical smoke sensor and heat sensor, it minimizes false alarms while providing accurate detection. With a built-in 85 dB siren and wireless interconnection capabilities, this detector ensures rapid response and seamless integration with Ajax security systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX FIREPROTECT 2 AC 240V Heat & Smoke Detector | Dual-Spectrum Sensor | 85 dB Siren | by Dicker Data
Brand: Dicker Data
SKU: 82200.175.WH3
Alternatively Known As: FireProtect 2 AC, Heat and Smoke Detector, Wireless Fire Alarm Detector
Technical Specifications
- Sensitive elements: smoke sensor, heat sensor
- Smoke detection: double-spectrum optical sensor
- Protection from false alarms: does not react to water vapor
- Patented smoke chamber protects sensor from dust, dirt, and insects
- Dangerous temperature detection meets Class A1R heat detector requirements
- High temperature alarm activates above 64°C
- Temperature spike alarm triggers when temperature rises more than 10°C in 1 minute or less
- Radio communication range up to 1,700 m
- In-built siren volume: 85 dB at 3 meters
- Interconnected fire detectors alarms activate built-in sirens within 20 seconds
- LED indication: green for power, yellow for malfunctions, red for fire alarms
- Test/mute button on front panel
- External power supply: 110–240 V~, 50/60 Hz
- Backup: 1 non-replaceable lithium battery CR-2/3AZ
- Operating temperature range: 0°С to +50°С
- Operating humidity: up to 80%
- Dimensions (H x L x W): 54mm x 122mm x 122mm
- Weight: 0.318 kg
Key Features
- Mains-powered with backup lithium battery for autonomous operation
- Dual-spectrum optical smoke sensor and heat sensor for accurate detection
- Patented smoke chamber protects sensor from dust, dirt, and insects
- Does not react to water vapor, minimizing false alarms
- High temperature alarm above 64°C and temperature spike alarm for rapid response
- Enhanced wireless interconnection with primary and fallback alarm notification
- Built-in siren with 85 dB volume at 3 meters
- LED indication for power, malfunctions, and fire alarms
- Test/mute button on front panel

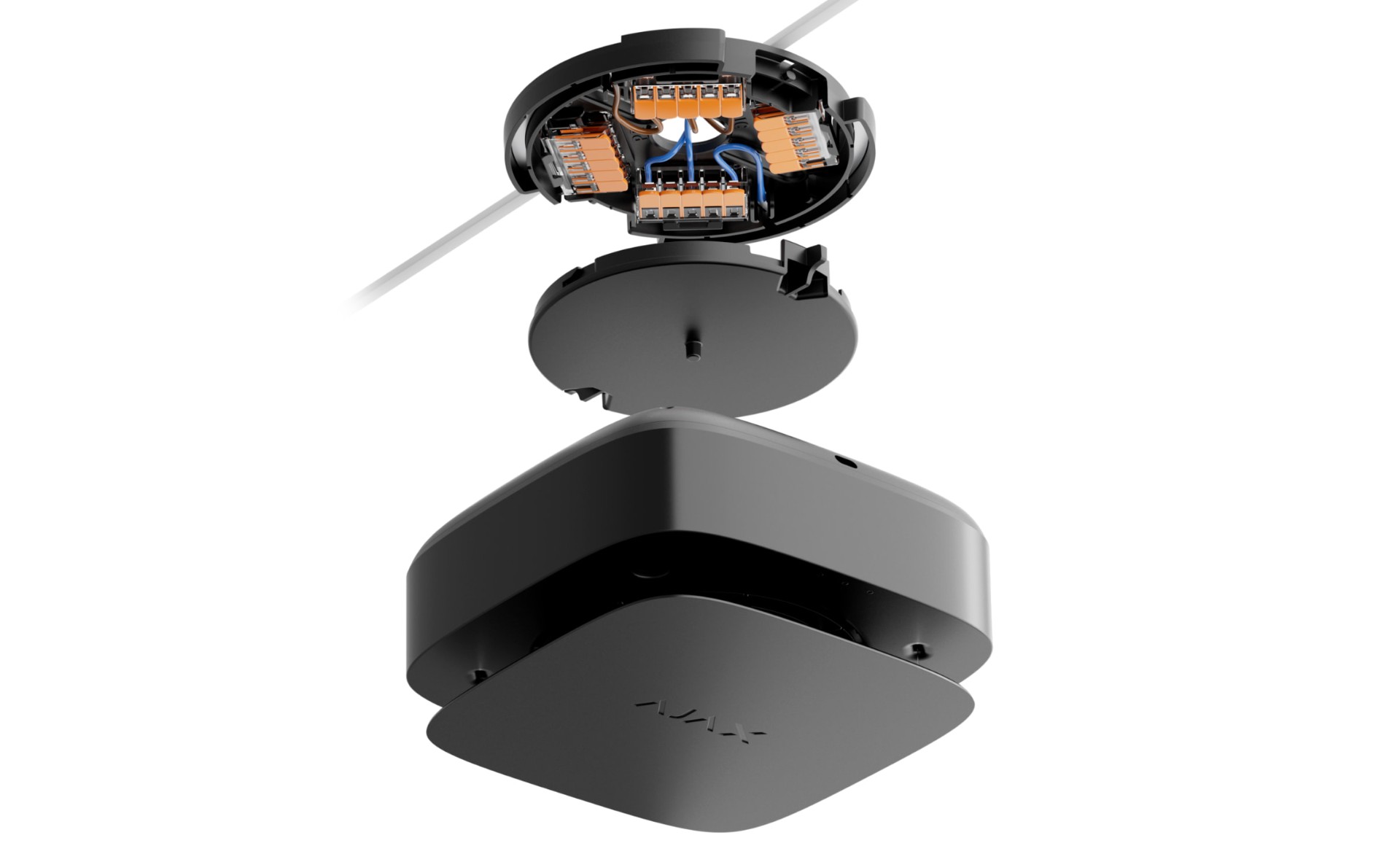

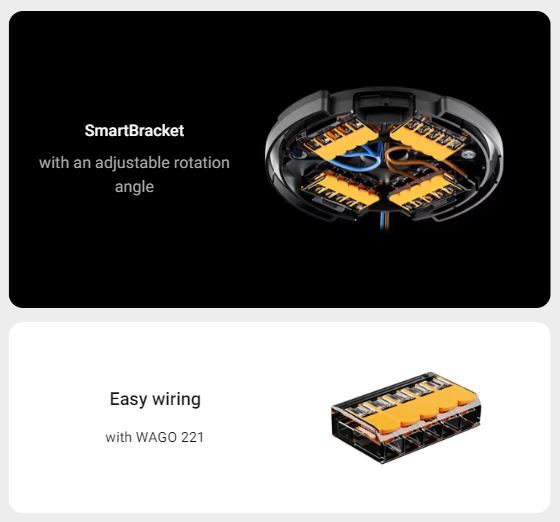

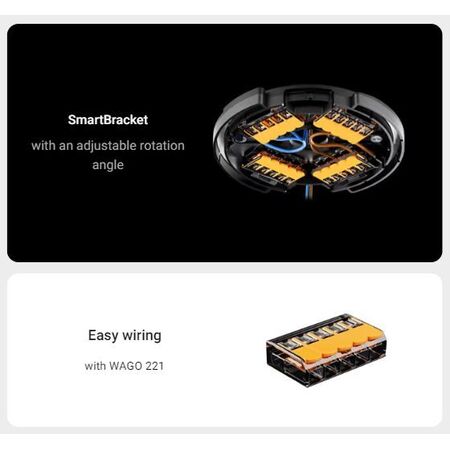

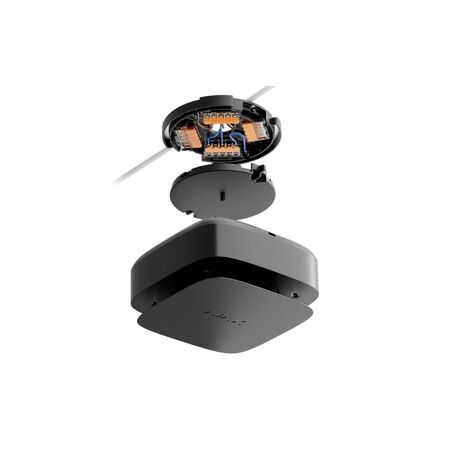

- Improved mounting panel with WAGO 221 connectors for easy installation
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper integration with the Ajax security system and compliance with fire safety standards.
Applications
- Residential fire safety
- Commercial buildings requiring fire detection
- Integration with Ajax security systems
Standards & Compliance
- AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Minimizes false alarms reducing unnecessary emergency responses
- Energy-efficient operation with backup battery to ensure long-term reliability
Warranty Information
24 months warranty.
Available Now
AJAX FIREPROTECT 2 AC 240V Heat and Smoke Detector White is available for immediate purchase, ideal for residential and commercial fire safety applications.
