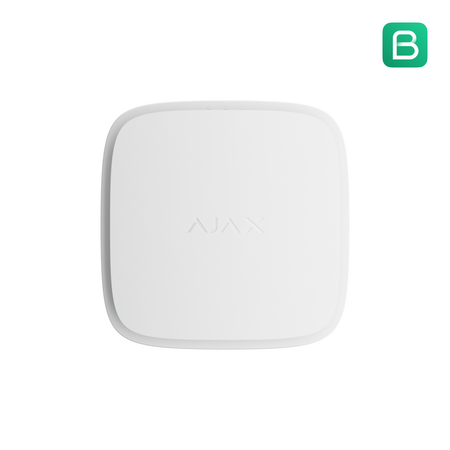

AJAX FIREPROTECT 2 SB Heat Detector | A1R-Class Thermistors | 85 dB Siren | Wireless Design | by Dicker Data
AJAX FIREPROTECT 2 SB Heat Detector is designed for reliable fire detection in residential and commercial settings. Equipped with A1R-class thermistors, it detects rapid temperature rises and activates an 85 dB alarm above 64°C. With a wireless design and a communication range of up to 1,700 meters, this detector ensures comprehensive safety and easy integration with AJAX security systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX FIREPROTECT 2 SB Heat Detector | A1R-Class Thermistors | 85 dB Siren | Wireless Design | by Dicker Data
Brand: Dicker Data
SKU: 53205.136.WH3
Alternatively Known As: Heat Fire Alarm Detector, Smoke-Free Fire Detector, Wireless Heat Sensor Alarm
Technical Specifications
- Sensitive element: Heat sensor
- Dangerous temperature detection: Meets Class A1R heat detector requirements
- High temperature alarm: Activates above 64°C
- Temperature spike alarm: Triggers on temperature rise >10°C within 1 minute
- Radio communication range: Up to 1,700 meters
- In-built siren volume: 85 dB at 3 meters
- Interconnected fire detectors: All detectors sound alarm within 20 seconds of detection
- LED indication: Green for power, yellow for malfunction, red for fire alarm
- Test/mute button: Located on front panel
- Power supply: 2 non-replaceable lithium batteries with 10 years life
- Operating temperature range: 0°C to +50°C
- Operating humidity: Up to 80%
- Protection class: IP20
- Dimensions (H x L x W): 45mm x 86mm x 86mm
- Weight: 0.142 kg
Key Features
- Equipped with two A1R-class thermistors for rapid heat detection
- Detects temperature rise of 10°C within one minute
- High temperature alarm activates above 64°C
- Radio communication range up to 1,700 meters
- Built-in 85 dB siren at 3 meters
- Interconnected alarms activate all detectors in the system
- LED indicators for power, malfunction, and fire alarm status
- Test and mute button on front panel
- IP20 protection class
Professional Installation Requirements
- Professional installation by a certified fire safety technician is recommended to ensure proper integration and compliance with fire safety regulations.
Applications
- Residential fire detection
- Commercial fire safety systems
- Integration with AJAX security systems
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Long battery life reduces battery waste
- Wireless design minimizes installation material use
Warranty Information
24 months warranty from the manufacturer.
Available Now
AJAX FIREPROTECT 2 SB Heat Detector White is available for immediate purchase, ideal for residential and commercial fire detection systems.
