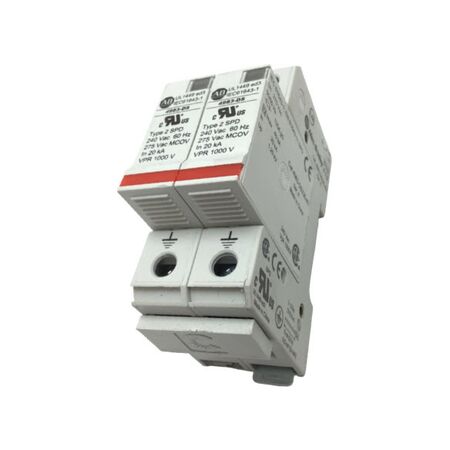

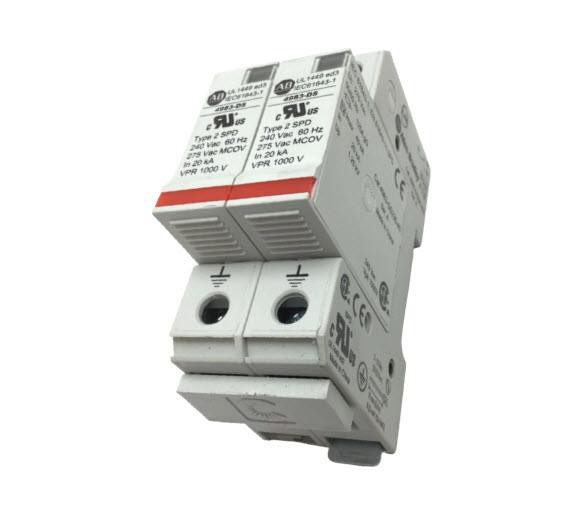

Allen-Bradley 4983DS230402 Standard Duty Surge Suppressor
The Allen-Bradley 4983DS230402 is a standard duty surge suppressor designed for industrial and control panel applications, featuring 2 pole protection, 275 V AC MCOV, and 40 kA lightning current capacity with DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 4983DS230402 Standard Duty Surge Suppressor
Brand: Allen-Bradley
SKU: 4983DS230402
Alternatively Known As: Surge Protector, Surge Diverter, Lightning Arrester, Transient Voltage Suppressor
Technical Specifications
- Type: Standard Duty Surge Suppressor
- Poles: 2
- Maximum Continuous Operating Voltage (MCOV): 275 V AC
- Lightning Current Rating: 40 kA (10/350 µs waveform)
- Mounting: DIN rail
- Certification: UL 1449 compliant
- Dimensions (H x L x W): 90mm x 70mm x 35mm
- Weight: 0.5 kg
Key Features
- Standard duty surge suppressor
- 2 pole design
- 275 V AC Maximum Continuous Operating Voltage (MCOV)
- 40 kA lightning current rating (10/350 microseconds)
- DIN rail mounting for easy installation
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper DIN rail mounting.
Applications
- Industrial electrical panels
- Control systems requiring surge protection
- DIN rail mounted electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste
- Enhances equipment longevity, minimizing replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 4983DS230402 Surge Suppressor is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
