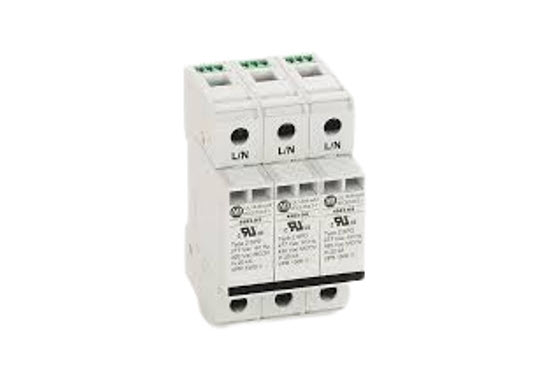

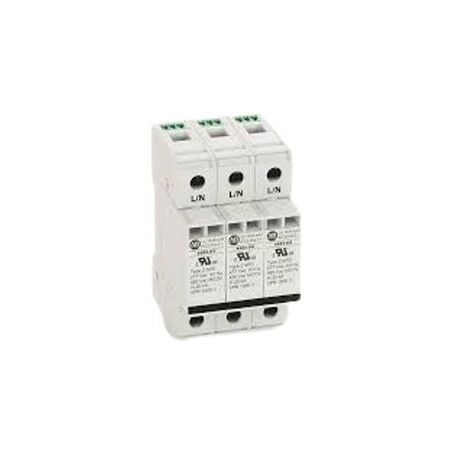

Allen-Bradley 4983DS230403 Standard Duty Surge Suppressor
The Allen-Bradley 4983DS230403 is a standard duty 3-pole surge suppressor designed for industrial applications, providing protection against lightning currents up to 40 kA with easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 4983DS230403 Standard Duty Surge Suppressor
Brand: Allen-Bradley
SKU: 4983DS230403
Alternatively Known As: Surge Protector, Lightning Arrester, Surge Suppressor Module, Electrical Surge Protector
Technical Specifications
- Type: Standard Duty Surge Suppressor
- Poles: 3
- Maximum Continuous Operating Voltage (MCOV): 275 VAC
- Lightning Current Capacity: 40 kA (10/350 µs waveform)
- Mounting: DIN rail mountable
- Certification: UL 1449 compliant
- Dimensions (H x L x W): 90mm x 70mm x 50mm
- Weight: 0.5 kg
Key Features
- Standard duty surge suppressor
- 3 pole design
- 275 VAC Maximum Continuous Operating Voltage (MCOV)
- 40 kA lightning current capacity (10/350 microseconds waveform)
- DIN rail mountable
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper surge protection.
Applications
- Industrial electrical panels
- Control systems requiring surge protection
- Electrical installations needing lightning current suppression
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste
- Enhances system longevity and reliability, minimizing resource consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 4983DS230403 Surge Suppressor is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
