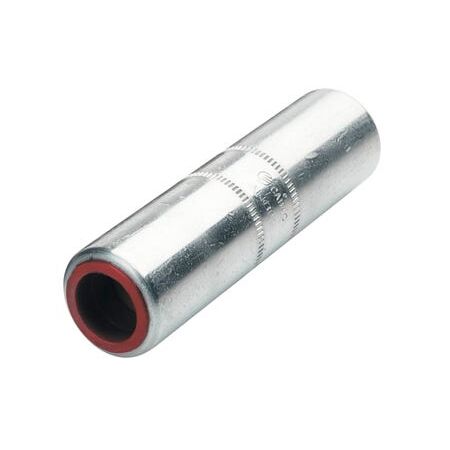

Aluminium Link 25mm2 Barrier Type Cabac
Cabac aluminium in-line link, 25mm2, barrier type, crimp compatible. Ideal for joining aluminium conductors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Conductor Size: 25 mm²
- Material: 99.6% pure electrical grade aluminium rod
- Tensile Strength: 110 MPa
- Ductile Strength: 28%
- Final Metal State: Fully Annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Manufactured from solid 99.6% pure electrical grade aluminium rod
- Forging process eliminates imperfections in the metal structure for long-term electrical reliability
- Unique 'Funnel Entry' design for easy insertion of stranded sector cable
- Barrier type design forces jointing compound back along conductor strands during crimping
- Barrels chemically treated to reduce contact resistance and filled with jointing compound
- Crimping recommended with standard hexagonal dies from centre outwards
Professional Installation Requirements
- Should be installed by a qualified electrician using standard Australian/NZ hexagonal crimping dies to ensure proper jointing and electrical safety.
Applications
- Electrical connections for stranded sector and circular stranded aluminium conductors
- Suitable for use with oil filled cables as a barrier link
- Electrical power connectivity requiring reliable aluminium conductor joints
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Improves electrical efficiency by reducing contact resistance, minimizing energy loss
Warranty Information
Warranty terms available upon request; typically covered against manufacturing defects.
Available Now
The Cabac Aluminium Link 25mm2 Barrier Type is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium conductor joints.
