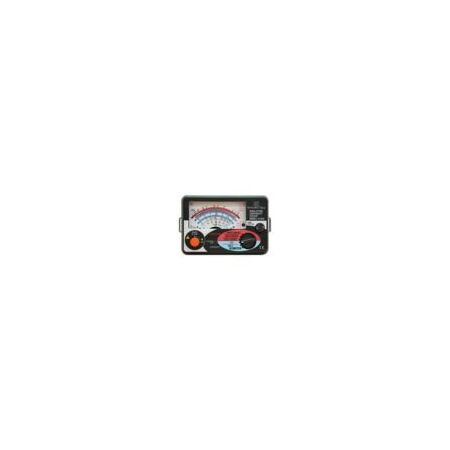

Analogue Insulation Tester | 100-400 MΩ Range | 250V/500V/1000V Voltage | CATIII 600V by Eaton
The Kyoritsu 3132A Analogue Insulation Tester offers a measurement range of 100-400 MΩ and selectable voltages of 250V, 500V, and 1000V—ideal for electrical maintenance and safety testing. Built for professionals, it ensures accurate insulation testing with a clear analogue scale display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Analogue Insulation Tester | 100-400 MΩ Range | 250V/500V/1000V Voltage | CATIII 600V by Eaton
Brand: Eaton
SKU: 03132A029C
Alternatively Known As: Kyoritsu 3132A Insulation Tester, Analogue Insulation Tester, Electrical Insulation Tester, Kyoritsu 3132A Meter
Technical Specifications
- Display type: Analogue scale
- Insulation measurement range: 100 - 400 MΩ
- Insulation measurement voltage: 250V, 500V, 1000V
- Measurement current: 1mA DC
- Short-circuit current DC: 2mA
- Resistance measurement max: 500 Ω
- AC voltage measurement max: 600 V
- Safety Category Rating: CATIII 600V
- Detection Method: Averaging
- Dimensions (H x L x W): 106mm x 160mm x 72mm
- Weight: 0.56 kg
Key Features
- Analogue scale display for clear and precise readings
- Insulation measurement range from 100 to 400 MΩ
- Measurement voltage selectable at 250V, 500V, and 1000V
- Measurement current of 1mA DC for accurate insulation testing
- Short-circuit current DC of 2mA
- Resistance measurement up to 500 Ω
- AC voltage measurement up to 600 V
- Safety Category Rating CATIII 600V ensuring high safety standards
Professional Installation Requirements
- No professional installation required; user should follow safety instructions and operate according to the manual.
Applications
- Electrical insulation testing for industrial and commercial electrical installations
- Maintenance and troubleshooting of electrical equipment insulation
- Safety verification in electrical systems
Standards & Compliance
- Complies with AS/NZS 61010.1 for safety requirements of electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Durable design reduces waste by extending product life
- Battery-powered operation minimizes energy consumption during testing
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Kyoritsu 3132A Analogue Insulation Tester by Eaton is available now for immediate purchase. Ideal for electrical maintenance and safety testing applications.
