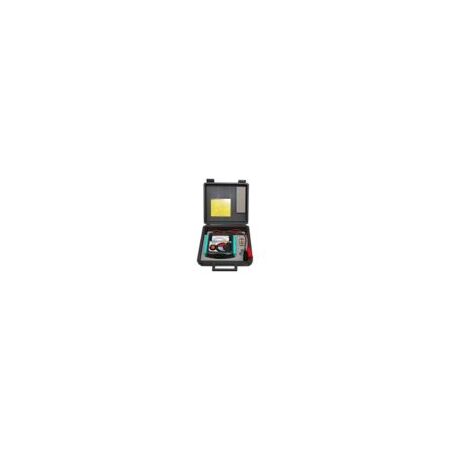

Analogue Insulation Tester | 250V to 1000V Range | Continuity Buzzer & Backlight | CAT III 300V by Eaton
The Kyoritsu 3131M analogue insulation tester features a measurement range of 250V to 1000V and a continuity buzzer for quick circuit checks. Ideal for mining and industrial applications, it offers enhanced visibility with a backlight and complies with safety standards for user protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Analogue Insulation Tester | 250V to 1000V Range | Continuity Buzzer & Backlight | CAT III 300V by Eaton
Brand: Eaton
SKU: 03131M065C
Alternatively Known As: Kyoritsu 3131M Insulation Resistance Tester, 1kV Analogue Insulation Tester, Mining Spec Insulation Tester
Technical Specifications
- Insulation measurement voltage - max: 1000 V
- Insulation measurement voltage - min: 250 V
- Resistance Measurement Max: 20 Ω
- Test Ranges: 250V, 500V, 1000V
- Measurement Capabilities: Continuity buzzer
- Test Meter Functions: Backlight
- Display type: Analogue scale
- Safety Category Rating: CAT III 300V
- Certifications: IEC 61557-1, IEC 61557-4, IEC 61557-2, IEC 61010-1
- Package contents: Test Leads, Hard Case, Fuse, Batteries, Instruction Manual
- Dimensions (H x L x W): 167mm x 185mm x 89mm
- Weight: 0.86 kg
Key Features
- Analogue scale display for clear readings
- Insulation measurement voltage range: 250V to 1000V
- Continuity buzzer for quick circuit checks
- Backlight for improved visibility in low light conditions
- Safety Category Rating CAT III 300V for enhanced user protection
Professional Installation Requirements
- No professional installation required; however, users should be trained in electrical testing and safety procedures.
Applications
- Electrical insulation testing in mining environments
- Industrial electrical maintenance and safety checks
- Verification of insulation resistance in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Battery-powered operation with included batteries for efficient energy use
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Kyoritsu 3131M analogue insulation tester is available now for immediate purchase. Ideal for mining and industrial electrical insulation testing applications.
