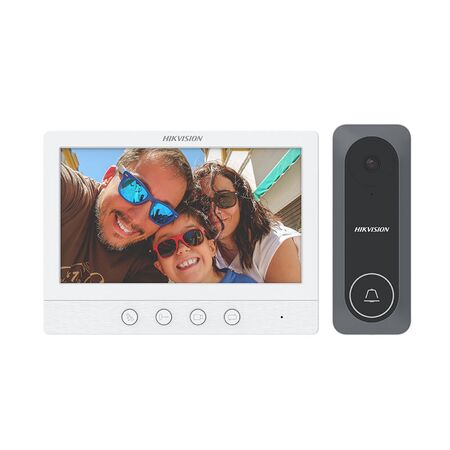

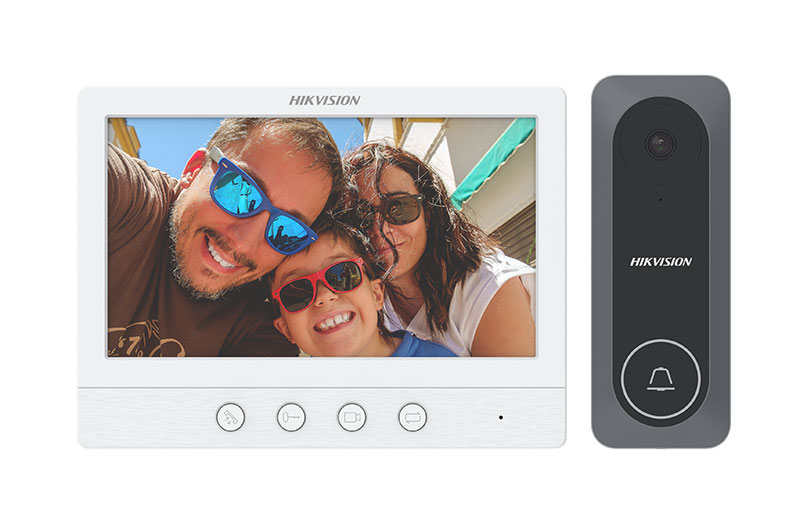

Analogue Video Intercom Kit 4 Wire Hikvision
Hikvision analogue video intercom kit features 4 wire connection. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4-Wire Video Intercom Kit, Hikvision Analogue Video Door Entry Kit, Hikvision DS-KIS212 Analogue Intercom
Technical Specifications
- System Type: Four-wire HD analogue video intercom
- Video Standard: HD TVI
- Door Station Resolution: 1280 × 720 at 60 fps
- Door Station Field of View: 130° horizontal, 70° vertical
- Indoor Station Display: 7-inch colour TFT
- Indoor Station Resolution: 1024 × 600
- Door Station Lighting: Infrared illumination up to 3 m
- Audio: Built-in microphone and loudspeaker
- Door Release: One relay, maximum 30 V DC, 1 A
- Power Supply: 12 V DC
- Door Station Power Consumption: Maximum 4 W
- Indoor Station Power Consumption: Maximum 5 W
- Expansion Capacity: Up to 2 door stations and 3 indoor stations
- Installation: Surface mounting
- Dimensions (H x L x W): 132mm x 178mm x 19mm
- Weight: 1.2 kg
Key Features
- Four-wire connection between the door station and indoor station
- HD TVI video for clear visitor identification
- One-touch visitor calling and remote door release
- 7-inch colour indoor monitor with physical control buttons
- Built-in infrared illumination for low-light viewing
- Integrated relay for electric lock or door-release control
- Supports additional door stations and indoor stations
- Suitable for residential and small commercial entry applications
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or electrical installer. Mains-connected power supplies and door-release wiring must comply with applicable Australian electrical requirements, and customer cabling should be installed in accordance with AS/CA S009:2020 where applicable.
Applications
- Residential front-door and gate entry systems
- Villa and townhouse video intercom installations
- Small offices and commercial premises
- Replacement of compatible four-wire analogue intercom systems
- Entry systems requiring local video communication and door release
Standards & Compliance
- AS/NZS 3000:2018 applies to the selection and installation of mains-connected electrical equipment and power supplies
- AS/CA S009:2020 applies where the installation includes customer cabling within its scope
Environmental Benefits
- Low-voltage 12 V DC operation and low device power consumption can reduce operating energy use
- Four-wire analogue architecture can support reuse of existing cabling during retrofit installations, reducing rewiring waste
- Durable door-entry hardware can extend service life and reduce replacement frequency
Warranty Information
Hikvision Australia warranty support is available through authorised distribution channels under the applicable product warranty terms. Confirm the warranty period with the supplying authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, electrical and communications distributors.
