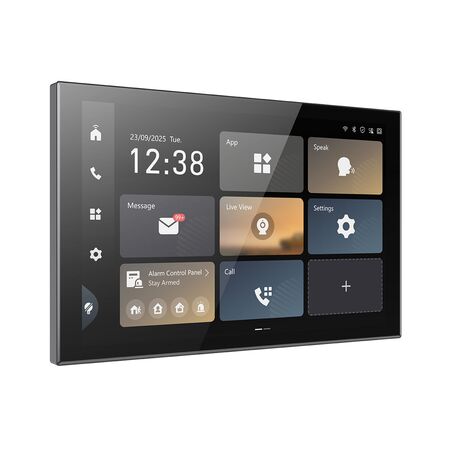

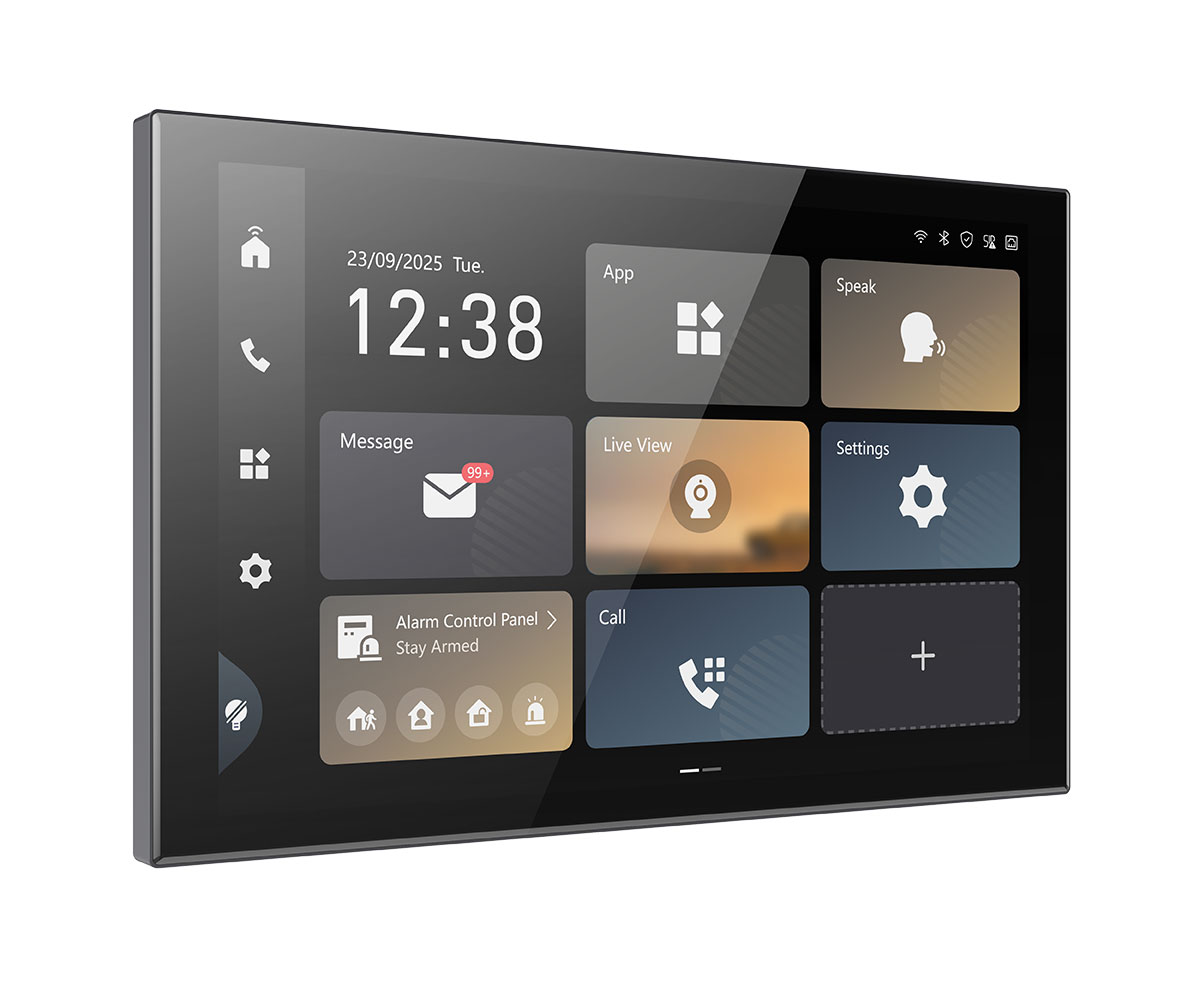

Android Room Station 10 Inch Surface Hikvision
Hikvision Android room station features a 10 Inch screen and surface mounting. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Android Indoor Station, Hikvision IP Video Intercom Monitor, Hikvision All-in-One Indoor Station
Technical Specifications
- Model: DS-KH9510-WTE1(B)
- Display: 10.1-inch IPS capacitive touchscreen
- Display Resolution: 1024 × 600
- Operating System: Embedded Android
- Memory: 2 GB RAM, 8 GB ROM
- Network: 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi
- Protocols: TCP/IP, SIP and RTSP
- Power Supply: 12 VDC, 1 A or IEEE 802.3af standard PoE
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Features: Noise suppression and echo cancellation
- Interfaces: 8 alarm inputs, RS-485, TF card support up to 128 GB, 1 alarm output and 1 relay output
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10% to 90% non-condensing
- Installation: Surface mounting
- Dimensions (H x L x W): 166mm x 254mm x 26.65mm
- Weight: 0.875 kg
Key Features
- 10.1-inch colour IPS touchscreen for room-station operation
- Built-in Android system with support for selected third-party applications
- Integrated Hik-Connect application for managing compatible Hikvision devices
- Supports video intercom, live view and two-way audio communication
- Connects using Ethernet, Wi-Fi or standard PoE
- Supports up to 16 linked indoor extensions and network cameras
- Includes alarm inputs, RS-485 and relay interfaces for system integration
- Designed for indoor residential, apartment, office and commercial intercom installations
Professional Installation Requirements
- Installation and configuration should be completed by a qualified security or communications technician. The unit requires suitable Ethernet or Wi-Fi connectivity, compatible Hikvision intercom equipment and either 12 VDC power or IEEE 802.3af PoE. Verify network configuration, door-station compatibility and access-control wiring before commissioning.
Applications
- Residential video intercom systems
- Apartment and townhouse access-control systems
- Office reception and internal communication systems
- Smart-home monitoring and control points
- Hikvision CCTV, alarm and intercom system integration
- Indoor visitor communication and door-release control
Standards & Compliance
- AS/NZS 62368.1 series — applicable safety standard for audio, video, information and communication technology equipment; product-specific conformity was not stated in the reviewed Hikvision datasheet.
Environmental Benefits
- PoE operation can reduce the need for separate power cabling at the installation point
- Low-power operation of up to approximately 12 W helps limit operating energy consumption
- Digital intercom notices, live view and event records can reduce reliance on printed visitor and alarm records
- Surface-mounted construction and replaceable system components can support longer service life and reduce replacement waste
Warranty Information
Australian distributor information lists a 2-year manufacturer warranty for Hikvision intercom products; confirm the applicable terms with the authorised supplier at purchase.
Available Now
Available through Hikvision and authorised Australian security, communications and intercom distributors.
