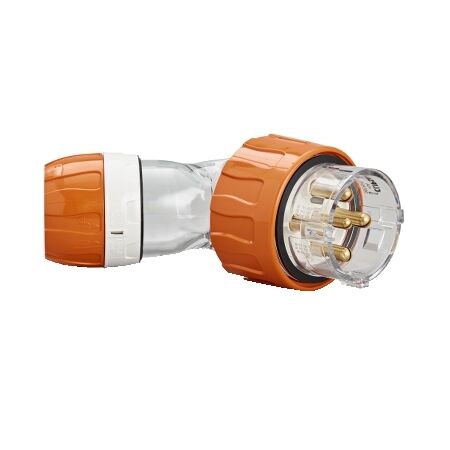

Angled Industrial Plug 40A | 500V | IP66 Rated | Electric Orange by Clipsal
Angled industrial plug with 40A current and 500V voltage—ideal for machinery and equipment. Built for industrial and commercial use, with IP66 protection and secure screw terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Angled Plug, IP66, 500V 40A - 5 Round Pins Electric Orange
Brand: Clipsal
SKU: 56PA540-EO
Alternatively Known As: Industrial Plug, 3 Phase Plug, Heavy Duty Plug
Technical Specifications
- Rated current: 40A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate housing with brass pins
- IP Rating: IP66
- Cable entry: Cable gland
- Wire stripping length: 20mm to 50mm
- Poles description: 3P + N + E
- Dimensions (H x L x W): 78mm x 168mm x 130mm
- Weight: 0.42 kg
Key Features
- IP66 rated for protection against dust and water
- Rated current of 40A and operational voltage of 500V AC
- Screw terminal connections for secure wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial and utility applications
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Angled Plug is available now for immediate purchase. Ideal for industrial and commercial applications.
