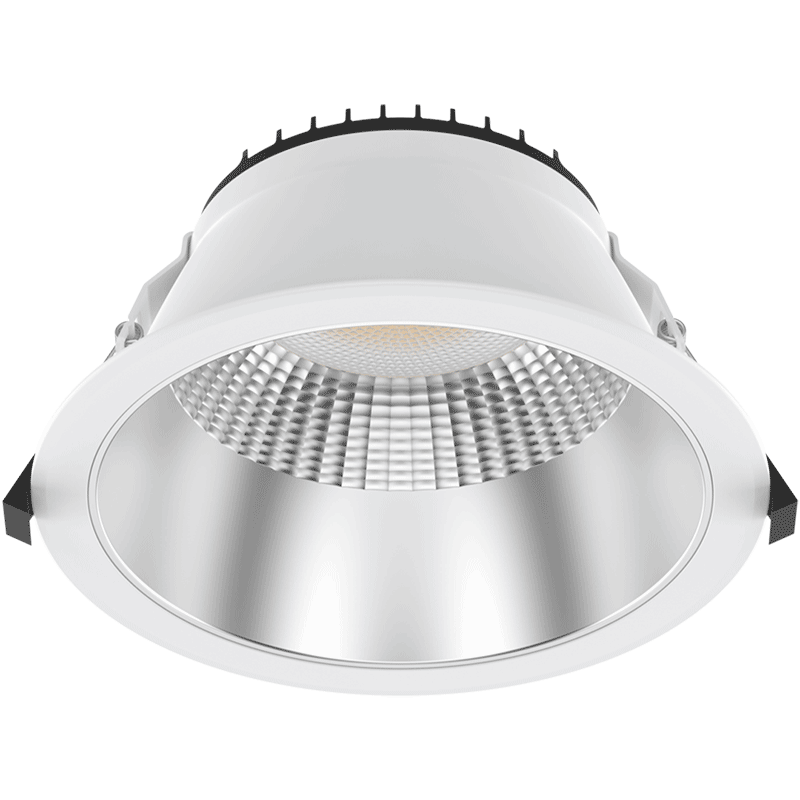

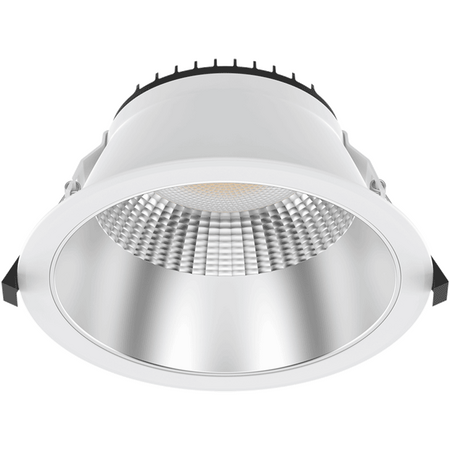

'Astral 10W Recessed Downlight 2CCT 115mm White Haneco'

BRAND: Haneco
SKU: AST10W-115-WW
$42.20 List price: $56.30
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Astral recessed downlight features 10W output, 2CCT selection and 115mm cutout in white. Ideal for residential ceiling lighting.'

Alternatively Known As: Haneco ASTRAL AST10W-115-WW, 10W LED Downlight, White Low-Glare Commercial Downlight

Technical Specifications
  • Product Code: AST10W-115-WW
  • Rated Power: 10 W
  • Lumen Output: 954 lm at 3000K; 1020 lm at 4000K
  • CCT Selection: 3000K / 4000K
  • Efficacy: 88 lm/W at 3000K; 97 lm/W at 4000K
  • Beam Angle: 60°
  • Input Voltage: 220-240 Vac
  • Power Factor: >0.95
  • Dimming: Phase-cut dimmable
  • Insulation Class: Class II
  • Ingress Protection: IP54 from the face side only
  • Colour: White
  • Driver: Remote driver included
  • Glare Rating: UGR <19
  • Colour Rendering: CRI >90
  • Dimensions (H x L x W): 65mm x 115mm x 115mm
  • Weight: 0.2 kg
Key Features
  • 2CCT selection between 3000K warm white and 4000K neutral white
  • Low-glare recessed design suitable for visual-comfort applications
  • White 115mm fascia with a 90mm ceiling cutout
  • Phase-cut dimming compatibility
  • 60° beam angle for general and commercial lighting
  • Flicker-free LED performance
  • Remote driver arrangement
  • Modular ASTRAL design with optional reflector accessories
Professional Installation Requirements
  • Installation and mains electrical connection must be completed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm ceiling clearance, insulation compatibility and dimmer compatibility before installation.
Applications
  • Residential living areas, bedrooms and hallways
  • Retail, hospitality and office interiors
  • Hotel rooms and common areas
  • Boardrooms, meeting rooms and commercial spaces
  • General recessed ceiling lighting
Standards & Compliance
  • AS/NZS 60598.1:2017 including Amendments 1 and 2
  • AS/NZS 60598.2.2:2016 including Amendments 1 and 2
  • AS/NZS 61347.1:2016 including Amendment 1
  • AS 61347.2.13:2018
  • AS CISPR 15:2017
  • AS/NZS 3820 essential safety requirements
Environmental Benefits
  • LED efficacy of up to 97 lm/W can reduce operating energy compared with less efficient conventional lighting
  • Long-life solid-state LED technology can reduce lamp replacement frequency and associated waste
  • Modular reflector options can support product adaptability and reduce the need for complete fitting replacement
Warranty Information

Haneco direct-replacement warranty against manufacturing defects for 3-5 years, unless otherwise stated for the specific product. Installation by a licensed electrician is required for warranty coverage; removal and reinstallation labour is generally excluded.

Available Now

Available through Haneco and authorised Australian electrical wholesalers.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
