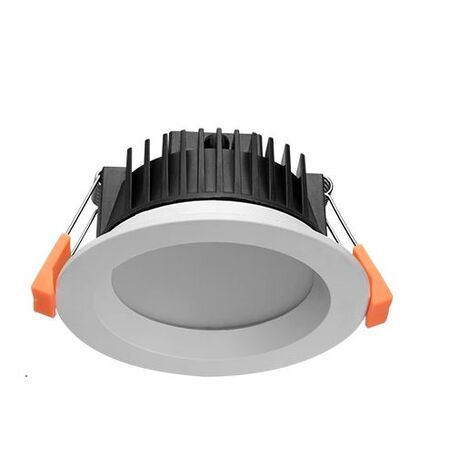

LED Downlight 13W 5CCT 90mm Cutout IP40 90° Beam White 3A Lighting

BRAND: 3A Lighting
SKU: DL1570/WH/5C
$11.20 List price: $13.90
+ −
30 Days Return Electricians Unlock Trade Access
3A Lighting LED downlight features 13W, 5CCT selectable CCT, 90mm cut-out, IP40. Ideal for residential and commercial ceilings.
Technical Specifications
  • Power: 13W
  • Input Voltage: AC 200-240V 50/60Hz
  • Light Chip Type: SMD LED
  • Color Temperatures: 3000K, 3500K, 4000K, 5000K, 5700K
  • Beam Angle: 90°
  • Luminous Flux: 890-1080 lumens
  • Cut Out Diameter: 90mm
  • Dimmable: Yes, compatible with most rotary dimmers (e.g., Clipsal 32ELED, Gerard Diginet Rotary Dimmer)
  • IP Rating: IP40
  • Housing Color: White
  • Dimensions (H x L x W): 56mm x 109mm x 109mm
  • Weight: 0.3 kg
Key Features
  • New generation external driver SMD LED downlight kit
  • Recessed surface mount design
  • Dimming function compatible with most rotary dimmers
  • Includes flex and plug for easy installation
  • IP40 rated for indoor use
  • SAA Approved for safety
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper wiring and dimmer compatibility.
Applications
  • Residential: Living rooms, kitchens, bedrooms
  • Commercial: Offices, retail stores, hospitality
  • General: Indoor ceiling lighting requiring dimmable LED downlights
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long lifespan reduces waste and replacement frequency
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The 13W Recessed LED Downlight with 5 CCT and 90mm Cut Out is available now for immediate purchase. Ideal for residential and commercial indoor lighting applications.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
