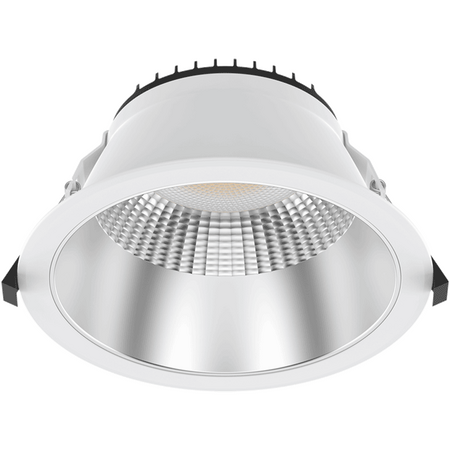

'Astral 15W Recessed Downlight 2CCT 145mm White Haneco'

BRAND: Haneco
SKU: AST15W-145-WW
$86.10 List price: $114.80
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Astral recessed downlight features 15W output, 2CCT selection and 145mm cutout in white. Ideal for residential ceiling lighting.'

Alternatively Known As: Astral commercial downlight, recessed LED downlight, tri-colour LED downlight

Technical Specifications
  • Power: 15 W
  • Colour Temperature: 3000K / 4000K selectable
  • Lumen Output: 1472 lm at 3000K; 1520 lm at 4000K
  • Efficacy: 96 lm/W at 3000K; 102 lm/W at 4000K
  • Beam Angle: 60°
  • Colour Rendering Index: CRI >90
  • Glare Rating: UGR <19
  • Dimming: Phase-cut dimmable, trailing-edge, 10–100%
  • Input Voltage: 220–240 VAC
  • Power Factor: >0.9
  • Electrical Classification: Class II
  • IP Rating: IP54 front; IP20 rear
  • IC Rating: IC-4, lamp only
  • Driver: Remote flicker-free driver
  • Connection: 0.6 m flex and plug
  • Body Material: Aluminium
  • Diffuser Material: PMMA
  • Projected Lifespan: 54,000 hours at Ta 25°C, L80
  • Operating Temperature: -20°C to 45°C
  • Dimensions (H x L x W): 77mm x 145mm x 145mm
  • Weight: 0.3 kg
Key Features
  • Selectable 3000K or 4000K colour temperature
  • Deep-recessed, low-glare optical design
  • High colour rendering with CRI greater than 90
  • Flicker-free remote driver
  • Phase-cut dimmable from 10% to 100% using compatible trailing-edge dimmers
  • IC-4 rated lamp for suitable insulation-contact installations, subject to installation instructions
  • IP54 protection on the front face
  • Greenstar-oriented commercial lighting design
  • Suitable for optional Astral reflector accessories
Professional Installation Requirements
  • Installation and electrical connection must be completed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. Confirm the IC-4 installation conditions and insulation compatibility before covering or abutting the fitting.
Applications
  • Residential living areas and bedrooms
  • Offices and boardrooms
  • Retail stores and showrooms
  • Hotels and hospitality areas
  • Restaurants and cafés
  • Medical facilities
  • Bathrooms and entrances where the IP rating is suitable
Standards & Compliance
  • AS/NZS 60598.1:2017 including amendments for general luminaires
  • AS/NZS 60598.2.2:2016 including amendments for recessed luminaires
  • AS/NZS 61347.1:2016 including amendment for lamp controlgear
  • AS 61347.2.13:2018 for LED controlgear
  • AS CISPR 15:2017 for lighting equipment electromagnetic disturbance
  • AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
  • LED technology provides lower energy consumption than equivalent conventional lamps
  • High efficacy of up to 102 lm/W supports reduced operating energy use
  • Projected L80 lifespan of 54,000 hours can reduce replacement frequency and associated waste
  • Aluminium body construction is recyclable at end of product life
  • Flicker-free, dimmable operation supports efficient lighting control
Warranty Information

5-year warranty stated on the Haneco Astral AST15W-145-WW product datasheet. Haneco provides a direct replacement warranty for eligible product failures, subject to its warranty terms and licensed installation requirements. ([haneco.com.au](https://haneco.com.au/import/downloads/AST15W-145-WW_DATASHEET_AST15W-145-WW.pdf?utm_source=openai))

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors. ([haneco.com.au](https://haneco.com.au/contact/?utm_source=openai))
