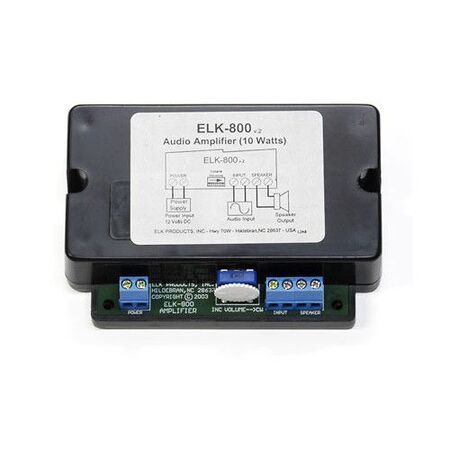

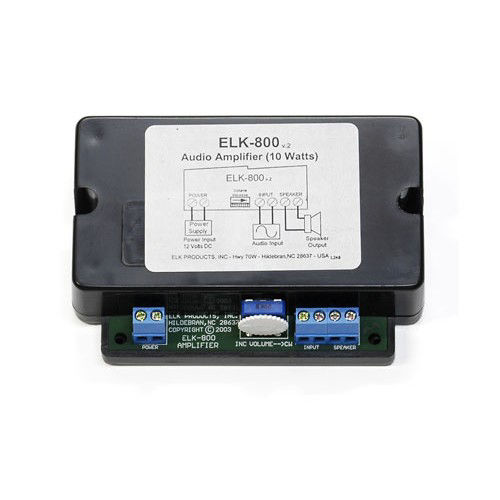

Audio Amplifier 10 Watt to Suit R210 Lite iCentral
iCentral audio amplifier features a 10 Watt output and suits the R210 Lite room station. Ideal for intercom audio installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: ELK800 Audio Amplifier, 10W Intercom Amplifier, R210 Lite Room Station Amplifier
Technical Specifications
- Model: ELK800
- Output Power: 10 W
- Operating Voltage: 12–24 V AC or DC
- Speaker Load: 2–16 ohms
- Current Draw: 50–800 mA, depending on load and volume
- Input Impedance: 1,000 ohms nominal
- Volume Control: On-board adjustable control
- Compatible Stations: Up to 8 R210 Lite room stations
- Power Supply Compatibility: 13.8 V DC System One power supply
- Mounting: Compact surface-mount enclosure with snap-on cover
- Dimensions (H x L x W): 29.2mm x 111.8mm x 76.3mm
- Weight: 0.1 kg
Key Features
- Designed for iCentral/Valet R210 Lite room stations
- Supports up to eight R210 Lite room stations per amplifier
- 10 W audio output for intercom, chime and music distribution
- Accepts 12–24 V AC or DC low-voltage input
- Built-in volume adjustment
- Can be installed inside a System One master station
- Suitable for daisy-chain or star-wired room station layouts
- Compact enclosure for retrofit intercom installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified intercom, security or low-voltage technician. Follow the manufacturer's wiring instructions and use an appropriate 12–24 V AC/DC supply. Do not connect directly to mains voltage.
Applications
- Audio distribution for iCentral R210 Lite room stations
- System One intercom installations
- Retrofit replacement of legacy Valet intercom room stations
- Distribution of master station audio, door station communication and chimes
- Low-voltage paging and audio installations
Environmental Benefits
- Low-voltage operation can reduce electrical energy use compared with mains-powered amplification systems
- Compact construction reduces material use and installation space
- Durable component design can extend service life and reduce replacement waste
- Suitable for retrofit installations, helping reuse existing intercom wiring and room station infrastructure
Warranty Information
iCentral intercom systems are covered by a three-year warranty against defective components from the date of purchase, subject to the manufacturer's warranty terms and exclusions. Australian Consumer Law rights also apply.
Available Now
Available through iCentral/Valet and authorised Australian distributors, subject to distributor stock.
