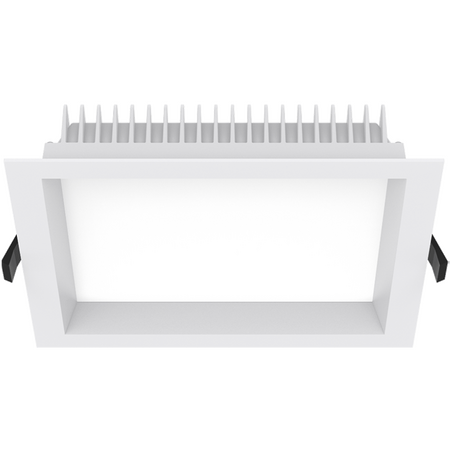

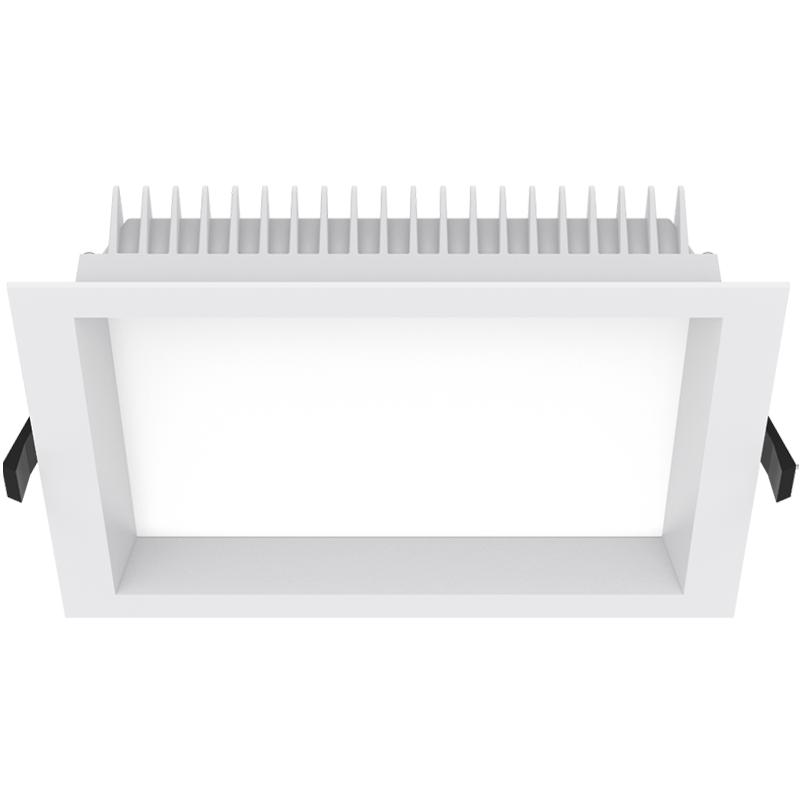

'Aurora Square 10W Downlight 3CCT IP54 90mm 0-10V Dimmable Haneco'

BRAND: Haneco
SKU: AURORA110-SQ-H10VD
$167.60 List price: $223.50
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Aurora square downlight features 10W output, 3CCT selection and IP54 rating with 90mm cutout and 0-10V dimming. Ideal for bathrooms and kitchens.'

Alternatively Known As: Haneco AURORA110-SQ, Aurora Square Commercial LED Downlight, Square Tri-Colour LED Downlight

Technical Specifications
  • Power: 10 W
  • Lumen Output: 991 / 1039 / 1011 lm at 3000 / 4000 / 5700 K
  • Colour Temperature: 3000 / 4000 / 5700 K
  • Efficacy: 102 / 111 / 105 lm/W
  • Dimming: 0-10V dimmable driver option; phase-cut trailing-edge standard configuration
  • Beam Angle: 90°
  • Colour Rendering Index: CRI >85
  • Flicker Performance: Flicker-free
  • Input Voltage: 220-240 Vac, 50/60 Hz
  • Power Factor: >0.9
  • Driver: Remote driver
  • Body Material: Aluminium
  • Diffuser Material: Opaque polycarbonate
  • IP Rating: IP54 from the front; IP40 from the rear
  • Electrical Classification: Class II
  • Operating Temperature: -25 to 40°C
  • Projected Lifespan: >50,000 hours at Ta25°C, L70
  • Cutout Size: 90 x 90 mm
  • Insulation Rating: Do not cover with building insulation
  • Dimensions (H x L x W): 51mm x 110mm x 110mm
  • Weight: 0.26 kg
Key Features
  • Selectable 3CCT operation with 3000K, 4000K and 5700K settings
  • 0-10V dimmable driver option for commercial lighting control systems
  • IP54 front rating suitable for bathrooms, laundries and other semi-protected wet-room applications
  • Recessed square architectural design with a 90mm square cutout
  • Remote driver and plug connection for simplified installation
  • Flicker-free performance for improved visual comfort
  • High-efficiency LED output up to 111 lm/W
  • KASTA-compatible control platform
  • Aluminium housing with recessed opaque diffuser
Professional Installation Requirements
  • Installation must be performed by an authorised and licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. The fitting must not be covered with building insulation, and required clearances must be maintained.
Applications
  • Commercial bathrooms and laundries
  • Boardrooms and meeting rooms
  • Offices and education facilities
  • Retail spaces, showrooms and hotel common areas
  • Entrances, food courts and function areas
  • Residential kitchens and other indoor architectural applications
Standards & Compliance
  • AS/NZS 3000 electrical installation requirements, as referenced in the manufacturer's installation guide
  • AS/NZS 60598.1 general requirements for luminaires
  • AS/NZS 60598.2.2 particular requirements for recessed luminaires
Environmental Benefits
  • High-efficiency LED output reduces electricity consumption compared with traditional light sources
  • Projected operating life exceeding 50,000 hours can reduce replacement frequency and product waste
  • Aluminium housing is recyclable at end of service life
  • Selectable colour temperature supports one fitting being used across multiple lighting applications, reducing inventory requirements
Warranty Information

5-year warranty against manufacturing defects, subject to Haneco warranty terms and correct installation by an authorised electrician.

Available Now

Available through Haneco and authorised Australian electrical distributors.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
