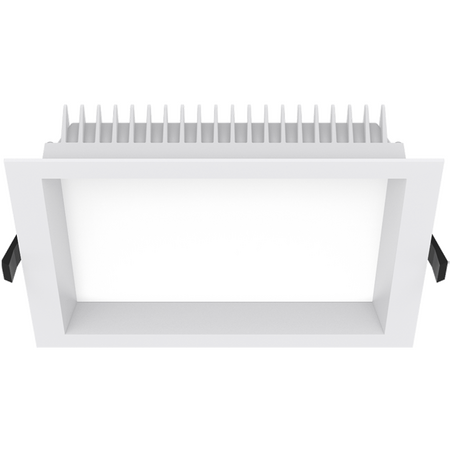

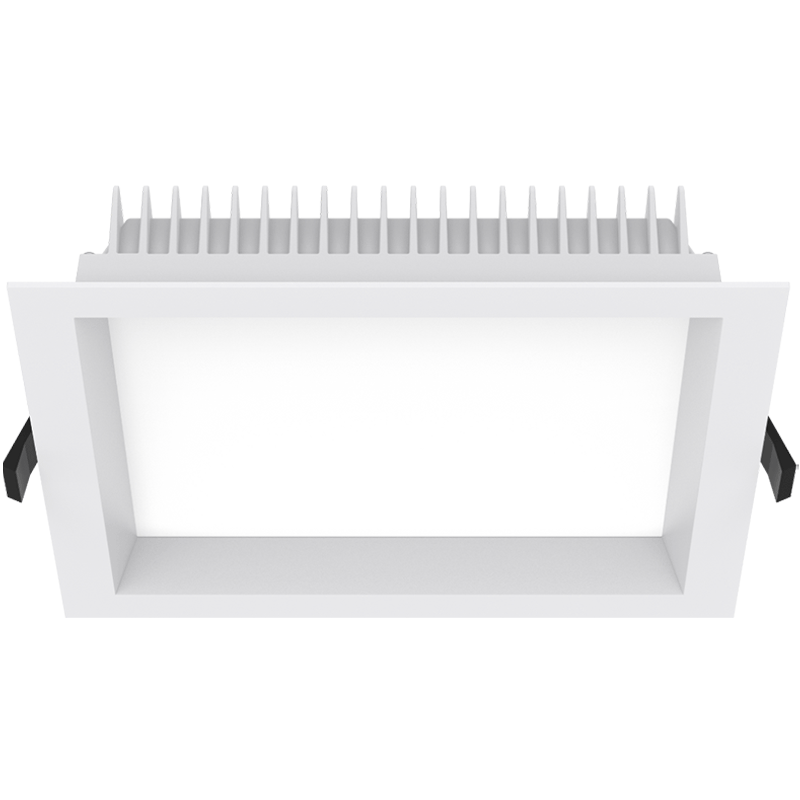

'Aurora Square 18W Downlight 3CCT IP54 120mm 0-10V Dimmable Haneco'

BRAND: Haneco
SKU: AURORA145-SQ-H10VD
$215.20 List price: $286.90
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Aurora square downlight features 18W output, 3CCT selection and IP54 rating with 120mm cutout and 0-10V dimming. Ideal for bathrooms and kitchens.'

Alternatively Known As: AURORA145-SQ, Aurora Square Commercial Downlight, Square Recessed LED Downlight

Technical Specifications
  • Product Code: AURORA145-SQ
  • SAP Code: 2002344
  • Input Voltage: 220–240 V AC, 50/60 Hz
  • Power: 18 W
  • Lumen Output: 1924 lm at 3000K; 2141 lm at 4000K; 2167 lm at 5700K
  • Efficacy: 109 lm/W at 3000K; 125 lm/W at 4000K; 122 lm/W at 5700K
  • Colour Temperature: Selectable 3000K, 4000K or 5700K
  • Dimming: Phase-cut trailing-edge, 10–100%; 0–10V and DALI driver options available
  • Ingress Protection: IP54 from below
  • Beam Angle: 90°
  • Colour Rendering: CRI 85
  • Housing: Aluminium
  • Diffuser: Opal polycarbonate
  • Driver: Remote driver
  • Power Factor: >0.9
  • Electrical Classification: Class II
  • Lifespan: More than 50,000 hours at Ta 25°C, L70
  • Operating Temperature: -20°C to 40°C
  • Installation Type: Recessed
  • Connection: 0.6 m flex and plug
  • IC Rating: Do not cover
  • Dimensions (H x L x W): 54mm x 145mm x 145mm
  • Weight: 0.4 kg
Key Features
  • Selectable tri-colour temperature: 3000K, 4000K and 5700K
  • 18W integrated LED light source with output up to 2167 lumens
  • Square recessed design with low-glare opal diffuser
  • IP54 protection from below for suitable indoor wet-area applications
  • Remote flicker-free dimmable driver
  • 0–10V and DALI dimming driver options available
  • Aluminium housing for improved heat dissipation
  • High ambient temperature suitability
  • Suitable for a 120 x 120 mm square ceiling cutout
  • KASTA compatible
Professional Installation Requirements
  • Installation must be performed by an authorised and licensed electrician in accordance with the supplied instructions and AS/NZS 3000. Confirm the selected driver and dimming control are compatible before installation. The fitting is IP54 from below only and must not be installed where it may be directly exposed to water.
Applications
  • Commercial offices and workspaces
  • Retail premises and showrooms
  • Boardrooms and meeting rooms
  • Hotel common areas and hospitality spaces
  • Education and medical facilities
  • Residential kitchens, laundries and bathrooms outside direct water-exposure zones
  • Protected indoor architectural lighting installations
Standards & Compliance
  • AS/NZS 3000:2018 – electrical installation and wiring requirements for recessed luminaires
  • AS/NZS 60598.2.4 – applicable requirements for recessed luminaires; verify the product declaration of conformity for the supplied variant
Environmental Benefits
  • 18W LED technology provides energy-efficient illumination compared with higher-wattage conventional downlights
  • Rated life exceeding 50,000 hours can reduce replacement frequency and product waste
  • Aluminium housing is durable and widely recyclable at end of service life
  • Selectable CCT and replaceable driver options can reduce the need to stock multiple fitting types
Warranty Information

Haneco specifies a 5-year warranty for the AURORA145-SQ against manufacturing defects, subject to its warranty terms. Installation by a licensed electrician and proof of purchase and installation may be required. The warranty does not generally cover removal or reinstallation labour.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
