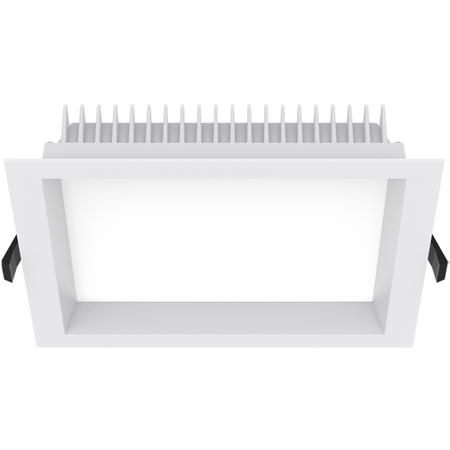

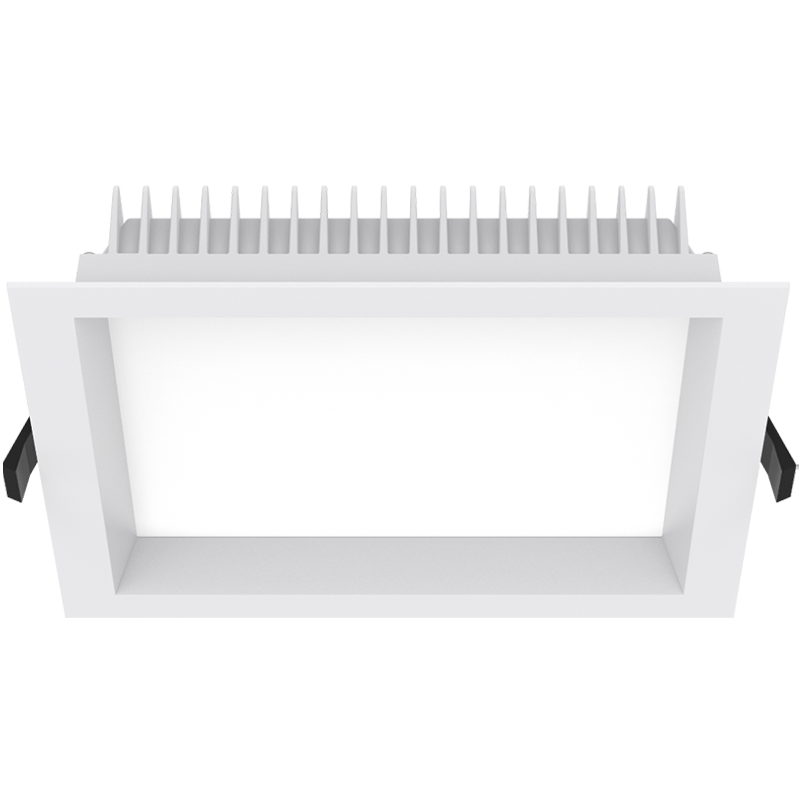

'Aurora Square 18W Downlight 3CCT IP54 120mm DALI Dimmable Haneco'

BRAND: Haneco
SKU: AURORA145-SQ-HDALI
$258.20 List price: $344.20
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Aurora square downlight features 18W output, 3CCT selection and IP54 rating with 120mm cutout and DALI dimming. Ideal for bathrooms and kitchens.'

Alternatively Known As: Aurora Square AURORA145-SQ Commercial LED Downlight, Square Recessed LED Downlight, Tri-Colour LED Downlight

Technical Specifications
  • Power: 18 W
  • Lumen Output: 1,924 / 2,141 / 2,167 lm
  • Colour Temperature: 3000 K / 4000 K / 5700 K
  • Dimming: DALI dimmable model; phase-cut trailing-edge option available
  • Cutout Size: 120 x 120 mm
  • Ingress Protection: IP54 from front, IP40 from rear
  • Beam Angle: 90°
  • Colour Rendering Index: CRI >85
  • Flicker-Free: Yes
  • Input Voltage: 220-240 Vac, 50-60 Hz
  • Power Factor: >0.9
  • Electrical Classification: Class II
  • Driver: Remote
  • Connection: 0.6 m flex and plug
  • Operating Temperature: -25°C to 40°C
  • Insulation Clearance: Do not cover with building insulation
  • Lifespan: >50,000 hours at Ta 25°C, L70
  • Body Material: Aluminium
  • Diffuser Material: Opaque polycarbonate
  • Finish: White
  • Dimensions (H x L x W): 54mm x 145mm x 145mm
  • Weight: 0.4 kg
Key Features
  • Selectable 3000 K, 4000 K and 5700 K colour temperatures
  • DALI dimming for integration with commercial lighting control systems
  • Low-glare recessed square diffuser design
  • IP54 protection from the front for suitable wet-room applications
  • Flicker-free light output
  • Remote driver supplied
  • High-efficiency output up to 125 lm/W
  • Suitable for commercial and selected residential installations
Professional Installation Requirements
  • Installation and electrical connection must be completed by an authorised and licensed electrician in accordance with AS/NZS 3000. The fitting must not be covered with building insulation, and the DALI driver and control wiring must be installed according to the manufacturer's instructions.
Applications
  • Commercial bathrooms and laundries
  • Kitchens and food preparation areas
  • Boardrooms and meeting rooms
  • Offices and education facilities
  • Retail spaces and showrooms
  • Hotel common areas
  • Medical and professional facilities
  • Entrances, food courts and function areas
Standards & Compliance
  • AS/NZS 3000: Electrical installations
  • AS/NZS 60598: General lighting luminaires
Environmental Benefits
  • LED technology provides lower energy consumption than equivalent halogen lighting
  • Selectable colour temperature reduces the need to stock multiple luminaires for different lighting requirements
  • Aluminium housing is recyclable at end of product life
  • Long operating life of more than 50,000 hours can reduce replacement frequency and waste
  • DALI control can support energy-efficient lighting management through dimming and scheduling
Warranty Information

5-year manufacturer warranty. Haneco provides direct replacement for covered product failures subject to its warranty terms.

Available Now

Available through Haneco and authorised Australian electrical and lighting distributors.
