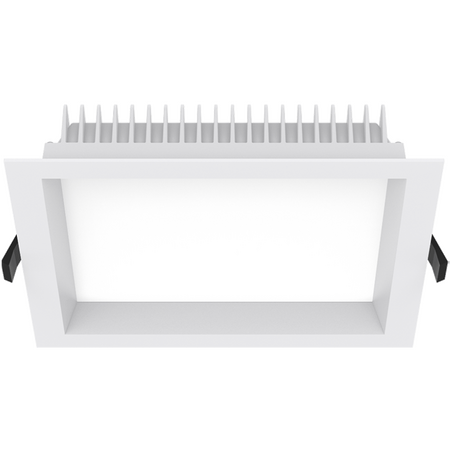

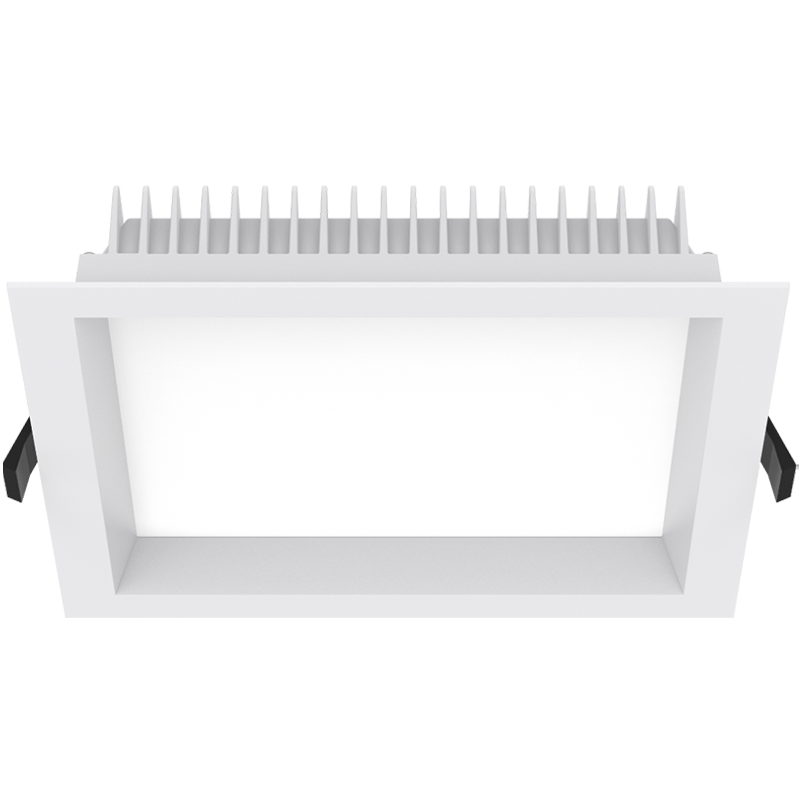

'Aurora Square 25W Downlight 3CCT IP54 160mm 0-10V Dimmable Haneco'

BRAND: Haneco
SKU: AURORA190-SQ-H10VD
$266.10 List price: $354.80
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Aurora square downlight features 25W output, 3CCT selection and IP54 rating with 160mm cutout and 0-10V dimming. Ideal for bathrooms and kitchens.'

Alternatively Known As: AURORA190-SQ, Haneco Aurora Square LED Downlight, 25W Square LED Downlight

Technical Specifications
  • Product Code: AURORA190-SQ
  • SAP Code: 2002345
  • Power: 25 W
  • Lumen Output: 2613 / 2830 / 2806 lm at 3000 / 4000 / 5700 K
  • Efficacy: 110 / 123 / 119 lm/W
  • Colour Temperature: 3000 / 4000 / 5700 K
  • Dimming: 0-10V dimmable driver option; phase-cut and DALI driver configurations also available
  • Beam Angle: 90°
  • Colour Rendering Index: CRI >85
  • Flicker: Flicker-free
  • Ingress Protection: IP54 from the front; IP40 body rating
  • Electrical Input: 220-240 V AC, 50/60 Hz
  • Power Factor: >0.9
  • Electrical Classification: Class II
  • Driver: Remote driver
  • Connection: 0.6 m flex and plug
  • Operating Temperature: -20 to 40 °C
  • Lifespan: More than 50,000 hours at Ta25°C, L70
  • Body Material: Aluminium
  • Diffuser Material: Opaque polycarbonate
  • Colour: White
  • Dimensions (H x L x W): 54mm x 190mm x 190mm
  • Weight: 0.58 kg
Key Features
  • Square recessed downlight with a low-glare opal diffuser
  • Three selectable colour temperatures: 3000K, 4000K and 5700K
  • 25W output with up to 2830 lumens
  • 0-10V dimmable driver configuration available
  • IP54 front rating for suitable protected wet-area applications
  • Remote driver and flex-and-plug connection included
  • Flicker-free operation
  • Class II construction with overload and short-circuit protection
  • Designed for commercial, hospitality, retail and architectural interiors
Professional Installation Requirements
  • Installation must be carried out by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm the selected 0-10V driver, control wiring and dimmer compatibility before installation. The fitting is marked do not cover and must not be covered by insulation unless the installation instructions specifically permit it.
Applications
  • Boardrooms and meeting rooms
  • Education facilities
  • Offices and commercial interiors
  • Retail spaces and showrooms
  • Hotel common areas
  • Medical facilities
  • Food courts and hospitality venues
  • Commercial bathrooms and laundries where the installation location is suitable
Standards & Compliance
  • AS/NZS 60598.1: General requirements and tests for luminaires
  • AS/NZS 60598.2.2: Particular requirements for recessed luminaires
  • AS/NZS 3000: Electrical installations and wiring requirements
Environmental Benefits
  • LED technology provides high light output at approximately 110-123 lm/W, reducing energy consumption compared with less efficient conventional lighting
  • More than 50,000-hour projected LED lifespan can reduce replacement frequency and associated waste
  • Aluminium housing is durable and recyclable at end of service life
  • Selectable CCT and dimming allow light output and colour temperature to be matched to the application, helping avoid unnecessary energy use
Warranty Information

5-year manufacturer warranty as specified for the AURORA190-SQ product. Haneco provides direct replacement for manufacturing defects, subject to its warranty terms; installation by a licensed electrician and compliance with the manufacturer's instructions are required.

Available Now

Available through Haneco and authorised Australian electrical wholesalers.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
