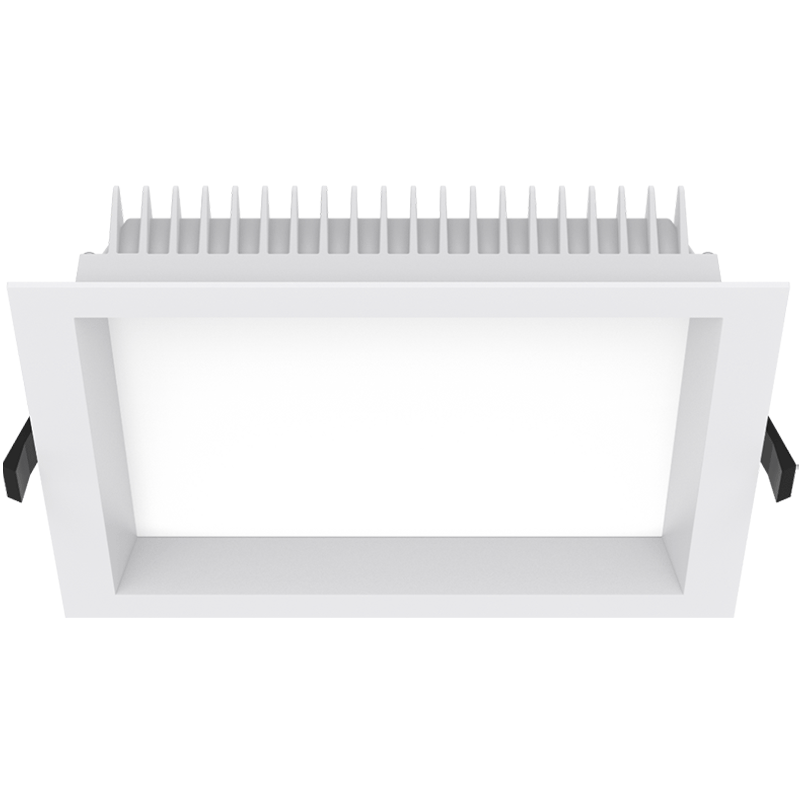

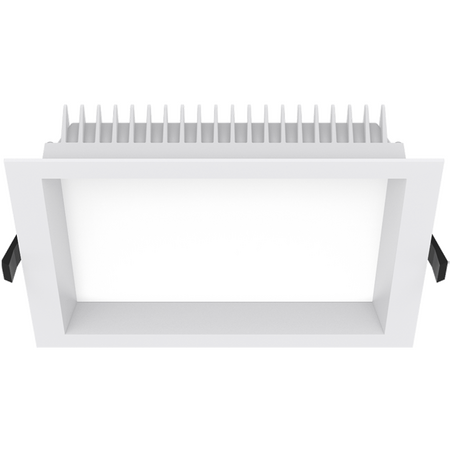

'Aurora Square 25W Downlight 3CCT IP54 160mm DALI Dimmable Haneco'

BRAND: Haneco
SKU: AURORA190-SQ-HDALI
$272.40 List price: $363.20
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Aurora square downlight features 25W output, 3CCT selection and IP54 rating with 160mm cutout and DALI dimming. Ideal for bathrooms and kitchens.'

Alternatively Known As: AURORA190-SQ, Aurora Square Commercial LED Downlight, Square LED Recessed Downlight

Technical Specifications
  • Power: 25 W
  • Lumen Output: 2613 lm at 3000K, 2830 lm at 4000K, 2806 lm at 5700K
  • Colour Temperature: 3000K / 4000K / 5700K selectable
  • Efficacy: 110 lm/W at 3000K, 123 lm/W at 4000K, 119 lm/W at 5700K
  • Cutout Size: 160 x 160 mm
  • Beam Angle: 90°
  • IP Rating: IP54 from the front only
  • Colour Rendering Index: CRI >85
  • Dimming: Trailing-edge phase-cut, 10–100%; DALI models available
  • Driver: Remote driver
  • Input: 220–240 V AC, 50/60 Hz
  • Power Factor: >0.9
  • Electrical Classification: Class II double insulated
  • Operating Temperature: -20°C to 40°C
  • Lifespan: >50,000 hours at Ta 25°C, L70
  • IC Rating: Do not cover
  • Connection: Flex and plug
  • Body Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Dimensions (H x L x W): 54mm x 190mm x 190mm
  • Weight: 0.58 kg
Key Features
  • Square recessed architectural design
  • Selectable 3000K, 4000K and 5700K colour temperatures
  • Suitable for 160 x 160 mm ceiling cutouts
  • IP54 protection from the front for suitable bathroom and laundry applications
  • Optional DALI dimmable model available
  • Trailing-edge phase-cut dimming from 10–100%
  • Flicker-free operation
  • Remote driver design
  • High-efficiency LED performance
  • KASTA compatible
  • Overload and short-circuit protection
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. The fitting is recessed and must not be covered with insulation or other materials unless the installation requirements specifically permit it.
Applications
  • Commercial offices and meeting rooms
  • Retail stores and showrooms
  • Hotels and hospitality areas
  • Education facilities
  • Medical facilities
  • Entrances, function areas and food courts
  • Commercial bathrooms and laundries where suitable installation clearances are maintained
Standards & Compliance
  • AS/NZS 60598.2.2:2016 for recessed luminaires
  • AS/NZS 3000:2018 Wiring Rules for electrical installation
Environmental Benefits
  • LED technology provides high light output with lower energy consumption than traditional halogen lighting
  • Long projected service life of more than 50,000 hours can reduce replacement frequency and material waste
  • Aluminium housing is recyclable at end of product life
  • Selectable colour temperature and dimming can support lighting efficiency by matching output to application requirements
Warranty Information

5-year manufacturer's warranty against manufacturing defects, subject to Haneco warranty terms and installation by a licensed electrician.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
