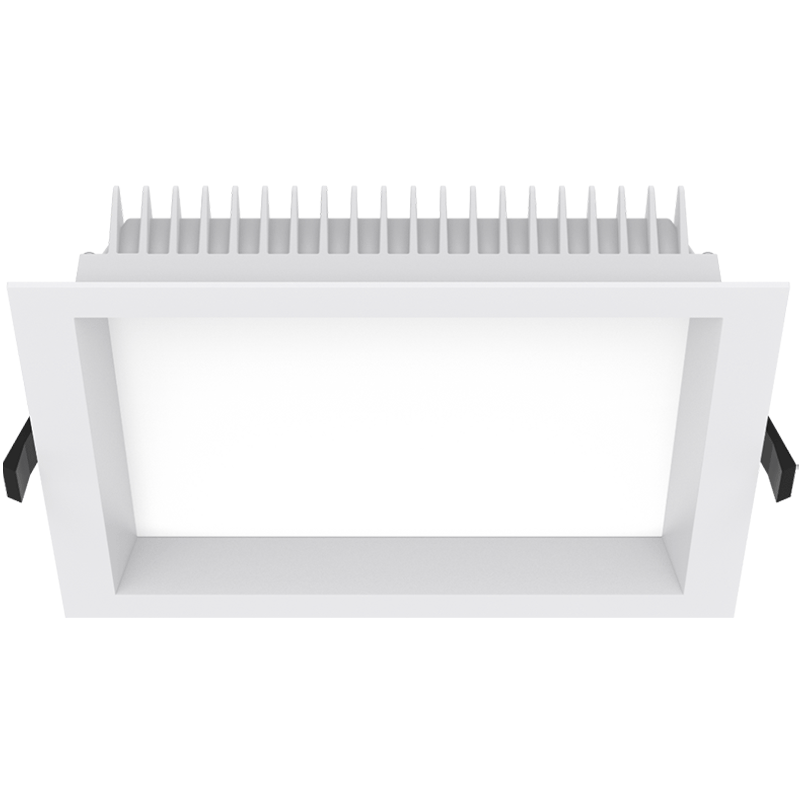

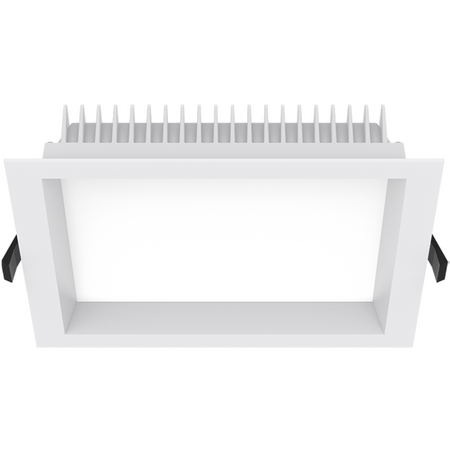

'Aurora Square 35W Downlight 3CCT IP54 200mm 0-10V Dimmable Haneco'

BRAND: Haneco
SKU: AURORA220-SQ-H10VD
$268.50 List price: $358.00
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Aurora square downlight features 35W output, 3CCT selection and IP54 rating with 200mm cutout and 0-10V dimming. Ideal for bathrooms and kitchens.'

Alternatively Known As: AURORA220-SQ, Aurora Square 220, Haneco Square Commercial Downlight

Technical Specifications
  • Product Code: AURORA220-SQ
  • Power: 35 W
  • Lumen Output: 3997 / 4285 / 4265 lm at 3000 / 4000 / 5700 K
  • Colour Temperature: 3000 K / 4000 K / 5700 K
  • Dimming: Phase-cut trailing-edge standard; optional 0-10V or DALI driver available
  • Cutout Size: 200 x 200 mm
  • Ingress Protection: IP54 front; IP40 rear
  • Beam Angle: 90°
  • Colour Rendering Index: CRI >85
  • Flicker-Free: Yes
  • Input Voltage: 220–240 Vac, 50–60 Hz
  • Power Factor: >0.9
  • Electrical Classification: Class II, double insulated
  • Driver: Remote
  • Connection: 0.6 m flex and plug
  • Operating Temperature: -25°C to 40°C
  • Expected Lifetime: More than 50,000 hours at Ta25°C, L70
  • Insulation Clearance: Do not cover with building insulation
  • Dimensions (H x L x W): 53mm x 228mm x 228mm
  • Weight: 0.92 kg
Key Features
  • Selectable 3000 K, 4000 K and 5700 K colour temperatures
  • High-output 35 W LED performance for commercial interiors
  • Recessed square design with 200 mm square cutout
  • IP54 protection from the front for suitable wet-room applications such as commercial bathrooms and laundries
  • Remote flicker-free driver with phase-cut dimming
  • Optional 0-10V and DALI dimming driver configurations
  • Aluminium housing with opaque polycarbonate diffuser
  • 90° beam angle and CRI greater than 85
  • Class II double-insulated construction
  • Suitable for residential or commercial use when installed as specified by the manufacturer
Professional Installation Requirements
  • Installation and electrical connection must be carried out by an authorised and licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. The fitting must not be covered with building insulation, and the IP54 rating applies to the front of the fitting only. ([haneco.com.au](https://haneco.com.au/import/downloads/AURORA220-SQ_Installation_AURORASQ%20Update%20on%2011Oct.pdf))
Applications
  • Commercial bathrooms and laundries
  • Boardrooms and meeting rooms
  • Education facilities
  • Retail spaces and showrooms
  • Offices and entrance areas
  • Food courts and function areas
  • Medical facilities and hotel common areas
Standards & Compliance
  • AS/NZS 60598.2.2: Applicable product standard for recessed LED luminaires; product certification should be confirmed against the supplied compliance documentation. ([energysafe.vic.gov.au](https://www.energysafe.vic.gov.au/industry-guidance/electrical/appliances-equipment-and-manufacurers/equipment-classes?utm_source=openai))
  • AS/NZS 3000: Installation requirement referenced in the Haneco installation guide for authorised electrical installation. ([haneco.com.au](https://haneco.com.au/import/downloads/AURORA220-SQ_Installation_AURORASQ%20Update%20on%2011Oct.pdf))
Environmental Benefits
  • LED technology provides high efficacy of up to 129 lm/W, supporting reduced energy consumption compared with lower-efficiency lighting technologies. ([haneco.com.au](https://haneco.com.au/import/downloads/AURORA220-SQ_DATASHEET_AURORA220-SQ.pdf))
  • More than 50,000-hour projected lifetime can reduce replacement frequency and associated waste. ([haneco.com.au](https://haneco.com.au/import/downloads/AURORA220-SQ_DATASHEET_AURORA220-SQ.pdf))
  • Aluminium housing and polycarbonate components can be separated for appropriate material recovery at end of life.
Warranty Information

Five-year warranty against manufacturing defects for this AURORA220-SQ model, subject to Haneco's warranty terms. Installation by a licensed electrician and proof of purchase and authorised installation may be required; removal and reinstallation labour is generally excluded. ([haneco.com.au](https://haneco.com.au/import/downloads/AURORA220-SQ_DATASHEET_AURORA220-SQ.pdf))

Available Now

Available through Haneco and authorised Australian electrical wholesalers or local electricians. ([haneco.com.au](https://haneco.com.au/contact/?utm_source=openai))
