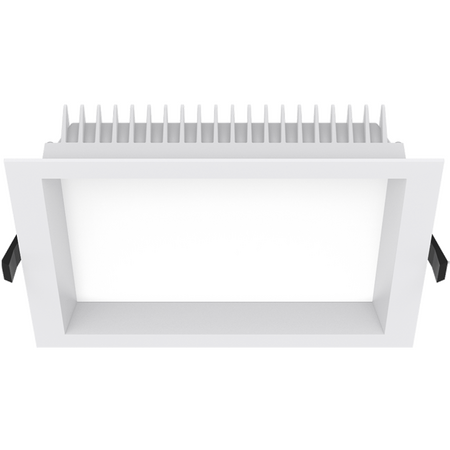

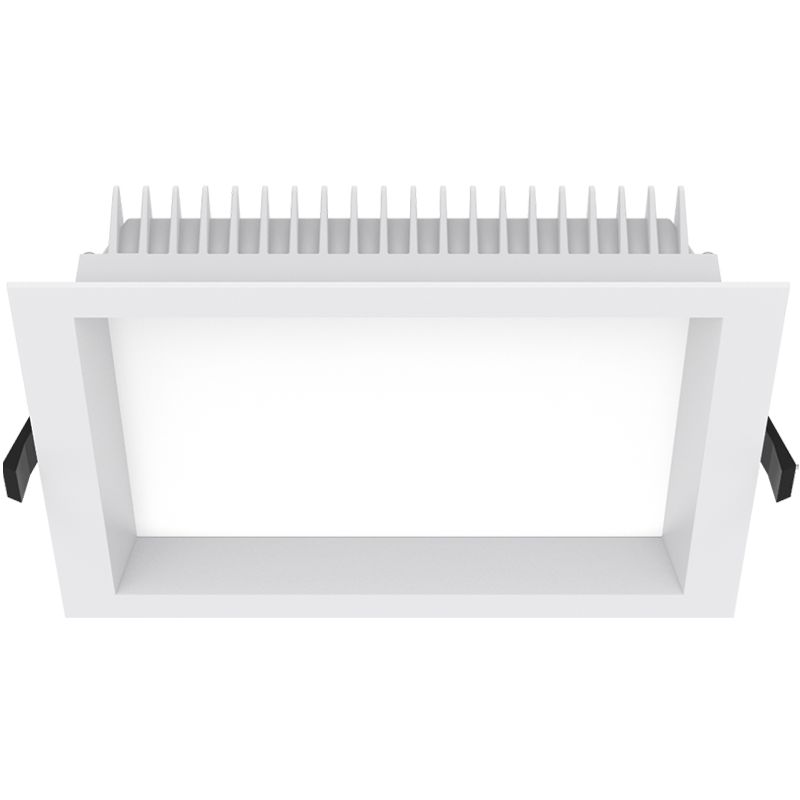

'Aurora Square 35W Downlight 3CCT IP54 200mm DALI Dimmable Haneco'

BRAND: Haneco
SKU: AURORA220-SQ-HDALI
$289.40 List price: $385.80
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Aurora square downlight features 35W output, 3CCT selection and IP54 rating with 200mm cutout and DALI dimming. Ideal for bathrooms and kitchens.'

Alternatively Known As: AURORA220-SQ, Aurora Square Commercial Downlight, 35W Square LED Downlight, Tri-Colour Square Downlight

Technical Specifications
  • Power: 35 W
  • Lumen Output: 3997 lm at 3000K; 4285 lm at 4000K; 4265 lm at 5700K
  • Colour Temperature: 3000K / 4000K / 5700K selectable
  • Efficacy: 116 lm/W at 3000K; 129 lm/W at 4000K; 125 lm/W at 5700K
  • Beam Angle: 90°
  • IP Rating: IP54 from below only
  • Dimming: DALI dimmable model; phase-cut trailing-edge dimming also available
  • Input Voltage: 220–240 Vac, 50/60 Hz
  • Driver: Remote driver
  • Electrical Classification: Class II
  • Power Factor: Greater than 0.9
  • CRI: Greater than 85
  • Body Material: Aluminium
  • Diffuser Material: Opaque polycarbonate
  • Operating Temperature: -20°C to 40°C
  • Projected Lifespan: Greater than 50,000 hours at Ta25°C, L70
  • Insulation Rating: IC rated; do not cover
  • Colour: White, RAL 9016
  • Power Lead: 0.6 m flex and plug
  • Dimensions (H x L x W): 53mm x 228mm x 228mm
  • Weight: 0.92 kg
Key Features
  • 35W commercial square LED downlight
  • Selectable 3000K, 4000K and 5700K colour temperatures
  • 200 x 200 mm square ceiling cutout
  • Optional DALI dimming for lighting control system integration
  • IP54 protection from below for suitable wet-room applications
  • Recessed diffuser designed to minimise glare
  • High-output illumination up to 4285 lumens
  • Aluminium housing with opaque polycarbonate diffuser
  • Remote driver and 0.6 m flex-and-plug connection
  • KASTA compatible
  • Suitable for insulated ceiling installations when installed according to the manufacturer’s instructions
Professional Installation Requirements
  • Installation must be carried out by a licensed electrician. Connect the 220–240 Vac supply and DALI control wiring, where applicable, in accordance with the manufacturer’s instructions and AS/NZS 3000. IP54 protection is from below only and does not make the fitting suitable for direct shower spray or immersion.
Applications
  • Commercial bathrooms and laundries
  • Kitchens and food preparation areas
  • Offices and meeting rooms
  • Retail spaces and showrooms
  • Hotels and common areas
  • Education facilities
  • Medical facilities
  • Entrances, corridors and function areas
Standards & Compliance
  • AS/NZS 60598 series for luminaires and recessed lighting equipment
  • Installation in accordance with AS/NZS 3000 wiring rules
Environmental Benefits
  • LED technology provides high light output with lower energy consumption than traditional commercial light sources
  • Long projected service life of more than 50,000 hours can reduce replacement frequency and material waste
  • Aluminium housing is durable and recyclable at end of service life
  • Selectable colour temperature and dimming support can help optimise lighting energy use
Warranty Information

Haneco direct replacement warranty, typically 3–5 years depending on the product; the Aurora Square range is marketed with a 5-year warranty. Warranty claims are subject to Haneco terms, including installation by a licensed electrician.

Available Now

Available through Haneco and authorised Australian electrical distributors.
