Trade Discount 25%

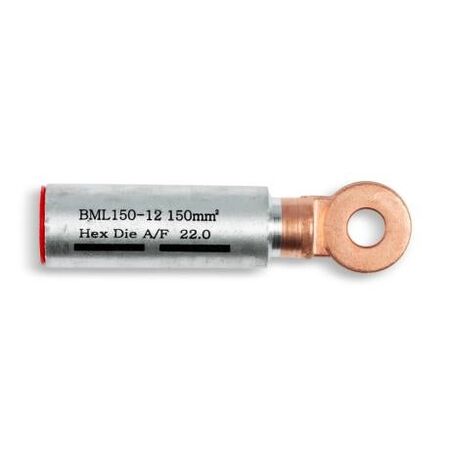

Bi-Metal Crimp Lug 150sqmm M12 Stud Friction Welded Wattmaster
Wattmaster friction-welded bi-metal crimp lug, 150sqmm cable, M12 stud. Aluminium-to-copper transition, pre-greased.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 150mm²
- Stud Size: M12
- Material: Bi-metal friction welded aluminum and copper
- Aluminum Purity: 99.6%
- Copper Purity: 99.9% ETP
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 15mm x 150mm x 40mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate crimping
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- High purity materials: 99.6% aluminum and 99.9% ETP copper
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial and commercial electrical installations requiring bi-metallic connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty terms as per Wattmaster standard product warranty policies.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 150mm² M12 Stud is available for immediate purchase, ideal for electrical termination in industrial and commercial settings.
