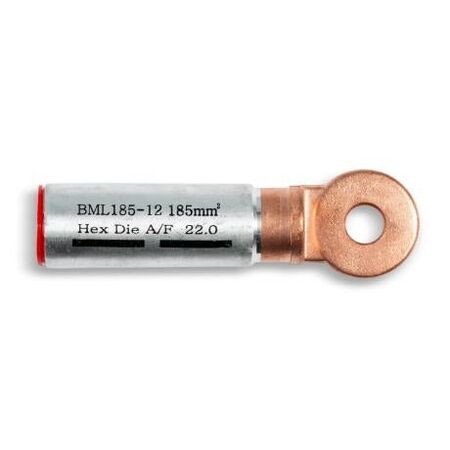

Bi-Metal Crimp Lug 185sqmm M12 Stud Friction Welded Wattmaster
Wattmaster friction-welded bi-metal crimp lug, 185sqmm cable, M12 stud. Aluminium-to-copper transition, pre-greased.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 185mm²
- Stud Size: M12
- Material: Bi-metal (Aluminum 99.6% and ETP Copper 99.9%)
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Pre-drilled copper palms
- Pre-greased aluminum barrels
- Dimensions (H x L x W): 15mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate crimping
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- High purity aluminum (99.6%) and ETP copper (99.9%)
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial and commercial electrical installations requiring bi-metal lugs
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metal lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty as per manufacturer’s standard terms and conditions.
Available Now
Available for immediate purchase, ideal for electrical contractors and industrial applications requiring reliable aluminum to copper conductor terminations.
