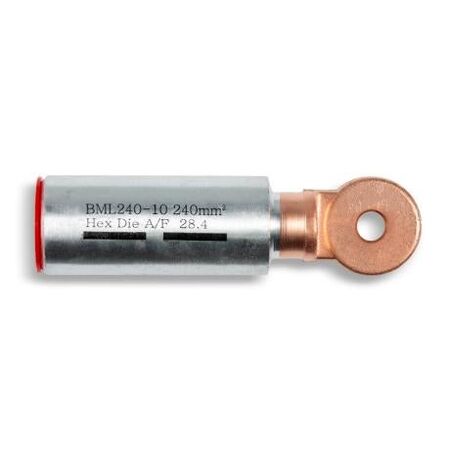

Bi-Metal Crimp Lug 240sqmm M10 Stud Friction Welded Wattmaster
Wattmaster friction-welded bi-metal crimp lug, 240sqmm cable, M10 stud. Aluminium-to-copper transition, pre-greased.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 240mm²
- Stud Size: M10
- Material: Bi-metal - Aluminum (99.6%) and ETP Copper (99.9%)
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Pre-drilled copper palms
- Pre-greased aluminum barrels
- Dimensions (H x L x W): 10mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate crimping
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- High purity materials: 99.6% aluminum and 99.9% ETP copper
Professional Installation Requirements
- Installation by a qualified electrician or technician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial and commercial electrical installations requiring bi-metallic connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic cable lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient conductivity, reducing energy loss
Warranty Information
Warranty coverage subject to manufacturer terms and conditions; typically includes defects in materials and workmanship.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 240mm² M10 Stud is available for immediate purchase, ideal for electrical termination applications in industrial and commercial settings.
