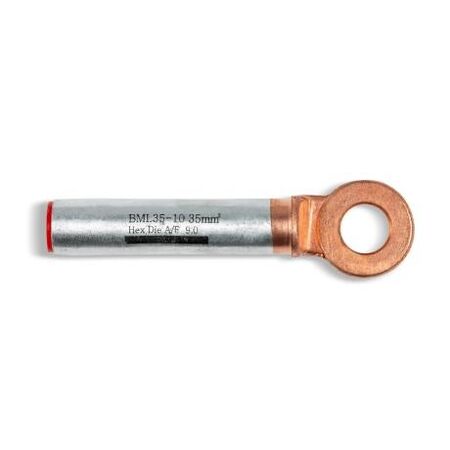

Bi-Metal Crimp Lug 35sqmm M10 Stud Friction Welded Wattmaster
Wattmaster friction-welded bi-metal crimp lug, 35sqmm cable, M10 stud. Aluminium-to-copper transition, pre-greased.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 35mm²
- Stud Size: M10
- Material: Bi-metal (Aluminum 99.6% and Copper 99.9%)
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Pre-drilled copper palms
- Friction welded construction
- Dimensions (H x L x W): 10mm x 80mm x 40mm
- Weight: 0.1 kg
Key Features
- Friction welded aluminum/copper crimp lugs
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for proper crimping
- Suitable for use with standard 6 ton and 12 ton Australian hex crimp dies
- Hi purity aluminum 99.6% and ETP copper 99.9%
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Electrical connections in industrial and commercial electrical installations
- Suitable for use in power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 35mm² M10 Stud is available for immediate purchase, ideal for electrical termination applications in industrial and commercial settings.
