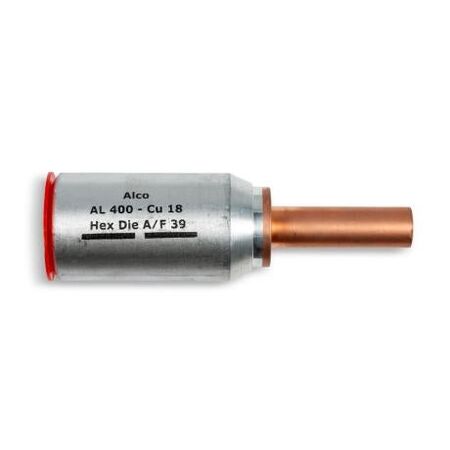

Bi-Metal Crimp Lug 400sqmm Stud Friction Welded Wattmaster
Wattmaster friction-welded bi-metal crimp lug, 400sqmm cable, stud. Aluminium-to-copper transition, pre-greased.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 400mm² aluminum
- Copper Stalk Diameter: 18mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Manufacturing: Friction welded bi-metallic construction
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Compatibility: Suitable for 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for proper installation
- Hi purity aluminum 99.6% and ETP copper 99.9%
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools (6 ton or 12 ton Australian hex crimp dies) is required to ensure secure and compliant connections.
Applications
- Termination of aluminum and aluminum alloy conductors to copper busbars and terminals in electrical installations
- Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic lugs
- Used in power distribution and electrical panel connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic cable lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient conductivity, reducing energy loss
Warranty Information
Warranty coverage subject to manufacturer terms; typically includes defects in materials and workmanship.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium 400mm² Copper Stalk 18mm is available for immediate purchase, ideal for electrical termination applications in industrial, commercial, and residential settings.
