Bi-Metal Crimp Lug 70sqmm M10 Stud Friction Welded Wattmaster

BRAND: Alco
SKU: ALCLCA70M10
$34.00 List price: $45.30
+ −
30 Days Return Electricians Unlock Trade Access

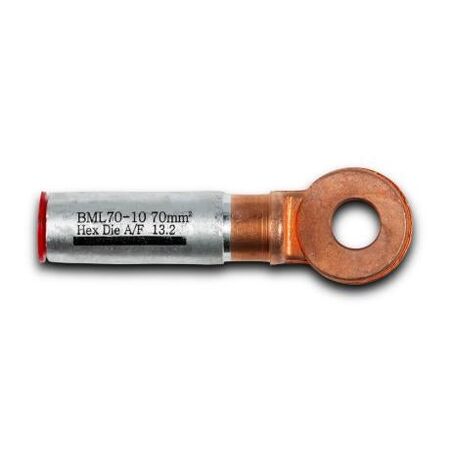

Wattmaster friction-welded bi-metal crimp lug, 70sqmm cable, M10 stud. Aluminium-to-copper transition, pre-greased.
Technical Specifications
  • Conductor Size: 70mm²
  • Stud Size: M10
  • Material: Bi-metal (Aluminum 99.6% and ETP Copper 99.9%)
  • Connection Type: Crimp lug with friction welded aluminum/copper
  • Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
  • Suitable for use with 6 ton and 12 ton Australian hex crimp dies
  • Dimensions (H x L x W): 10mm x 100mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Friction welded aluminum/copper crimp lugs for reliable electrical connection
  • Pre-drilled copper palms for easy installation
  • Pre-greased aluminum barrels to reduce corrosion
  • Printed with crimp indicator marks for proper crimping
  • Compatible with standard 6 ton and 12 ton Australian hex crimp dies
  • High purity materials: 99.6% aluminum and 99.9% ETP copper
Professional Installation Requirements
  • Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
  • Termination of aluminum and aluminum alloy conductors to copper busbars and terminals in electrical installations
  • Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic connections
Standards & Compliance
  • Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic lugs
Environmental Benefits
  • Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
  • High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information

Warranty against manufacturing defects as per Wattmaster standard terms and conditions.

Available Now

The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 70mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and busbar termination applications.
