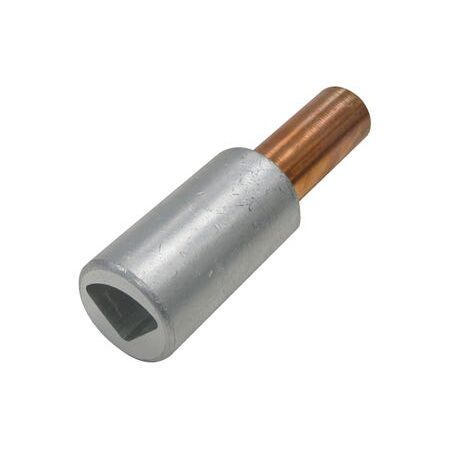

Bi-Metal Sector Link 150mm2 Cabac
Cabac bi-metal sector link, friction-welded aluminium-copper. Ideal for joining aluminium to copper conductors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Aluminium End Conductor: 240mm² Sector 4 Core
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.95% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Cable Sector Shape: BS3988-1970
- Operating Temperature: -40 to 125°C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 30mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Designed to joint four core solid sector aluminium conductors
- Crimp with conventional hex dies due to barrel format design
- Round (circular) external dimension on aluminium end with sector shaped internal dimension
- Specifically designed for solid four core aluminium conductors used in URD installations
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional to ensure proper crimping and secure connections.
Applications
- Used to join four core solid sector aluminium conductors to conventional stranded copper conductors in URD installations
- Electrical power connectivity applications requiring bi-metal lugs and links
Standards & Compliance
- AS/NZS 4325 Part 1 – Electrical & Electronics
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss in power transmission
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bimetal 4 Core Sector Link AL240 to CU150mm2 is available for immediate purchase, ideal for electrical power connectivity and URD installation applications.
