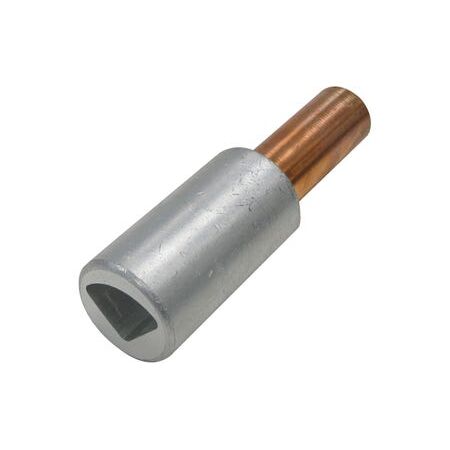

Bi-Metal Sector Link Al185 to Cu120mm2 4 Core Cabac
Cabac bi-metal sector link, friction-welded aluminium-copper. Ideal for joining aluminium to copper conductors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Aluminium End Conductor: 185 mm² Sector 4 Core
- Conductive Material: Aluminium Sleeve 99.6% pure, Copper Palm 99.95% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding (IEC standard)
- Cable Sector Shape: BS3988-1970
- Operating Temperature: -40 to 125 °C
- Electrical Resistivity: Aluminium max 2.6 micro-ohm cm, Copper 1.738 micro-ohm cm
- Conductivity: Aluminium minimum 61.8% IACS, Copper 99.7% IACS
- Dimensions (H x L x W): 20mm x 150mm x 100mm
- Weight: 0.2 kg
Key Features
- Manufactured using friction welding process producing a very strong electrically sound joint
- Designed to joint four core solid sector aluminium conductors
- Crimp with conventional hex dies due to barrel format design
- Round external dimension on aluminium end with sector shaped internal dimension
- Specifically designed for solid four core aluminium conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrical technician using appropriate crimping tools and following safety standards.
Applications
- Jointing or terminating four core solid sector aluminium conductors
- Used in URD (Underground Residential Distribution) installations
- Connecting four core aluminium sector conductors to stranded copper conductors
Standards & Compliance
- Complies with AS/NZS 4325 Part 1
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Efficient electrical conductivity reduces energy loss in power distribution
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Bimetal 4 Core Sector Link AL185 to CU120mm2 is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable aluminium to copper conductor connections.
